25 Cube Stereo Hybrid One77 HPC TM - Green -
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks and reduced maintenance, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800 Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a direct mount chainguard to keep you driving forwards even when the going gets rough.
Frame
- C:62® Monocoque Advanced Twin Mold Technology
- Aluminium 6061 T6 Rear Triangle
- Efficient Trail Control
- FSP 4-Link
- Agile Trail Geometry
- Boost 148
- UDH™
- Full Integrated Battery
- Advanced Internal C
Fork
- Fox 38 Float GRIP
- 3-Position w/Micro Adjust
- Tapered
- 15x110mm
- E-Bike Optimized
- 170mm
Suspension

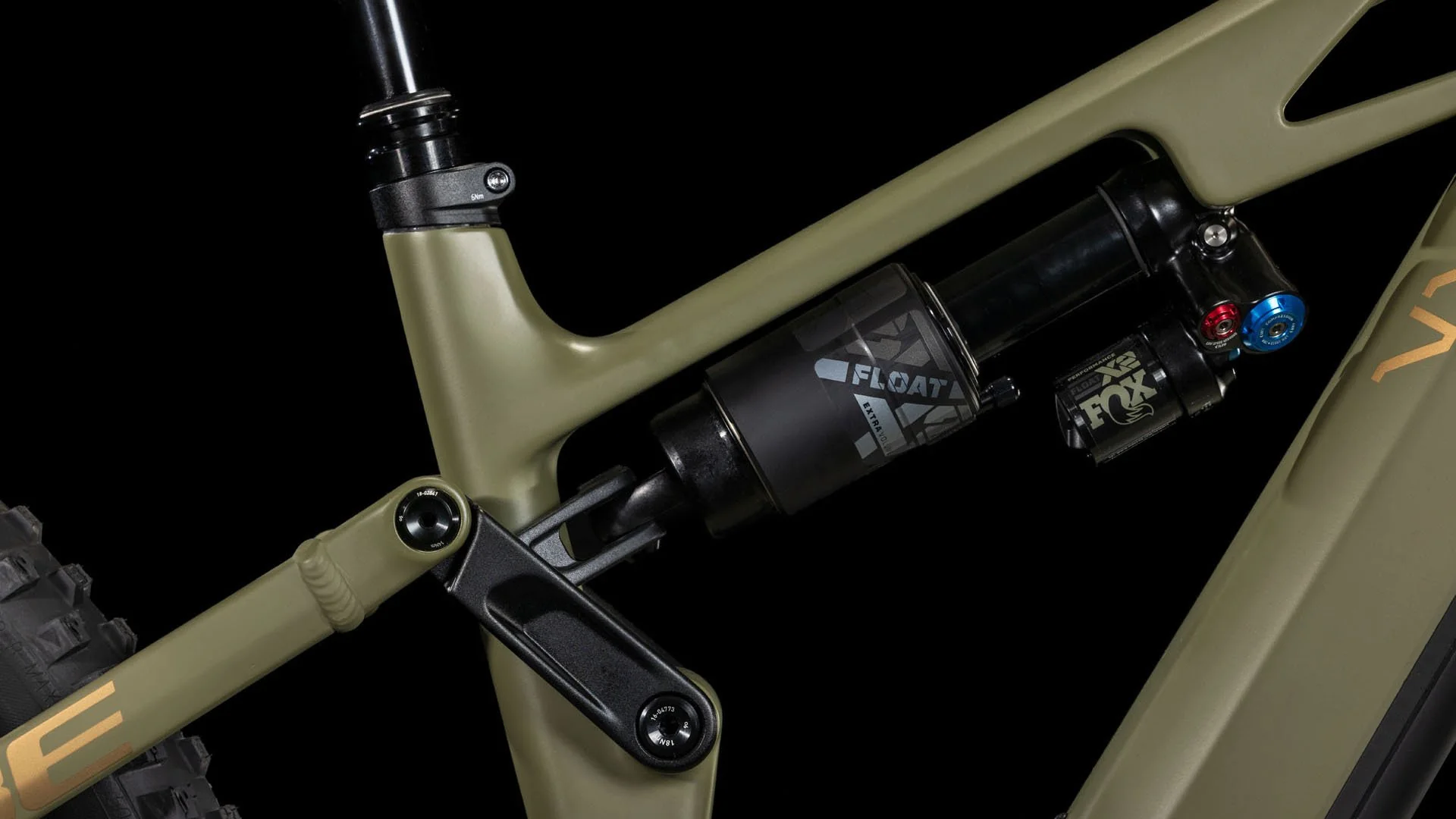

- Fox Float X2 Performance
- 230x65mm
- Low Speed Rebound & Compression w/ 2-Position Lever

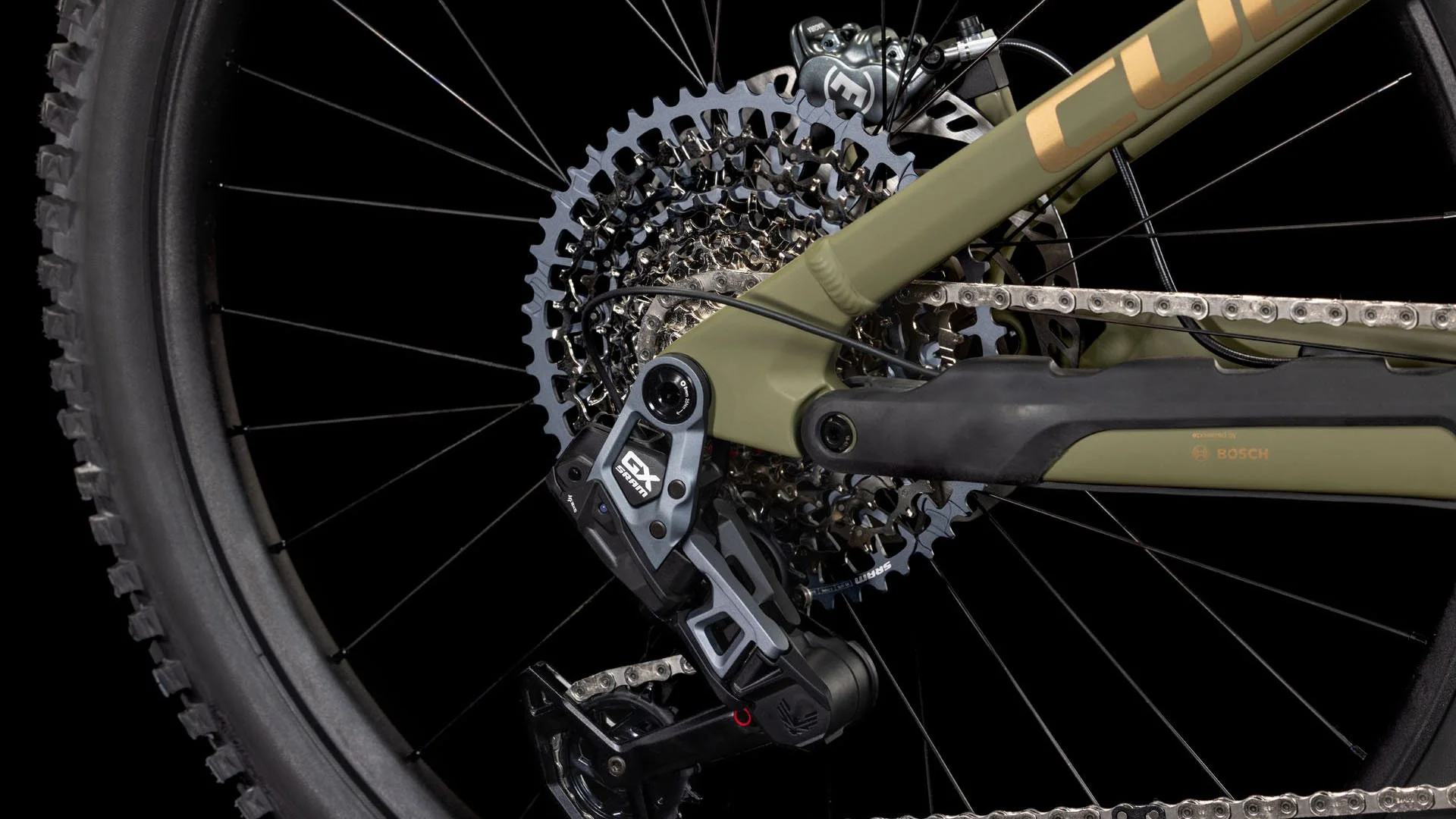

Drivetrain
- Rear Derailleur: Sram GX Eagle AXS™ Transmission, 12-Speed
- Shifters: Sram AXS™ Pod Controller
- Crankset: ACID MTB Hybrid Pro, 36T
- Chain: Sram GX Eagle™ Transmission
- Cassette: (TEXT) Sram XS-1275, 10-52T
Brakes
- Magura MT7
- Hydr. Disc Brake (203/203)
- TYPE Hydraulic Disc Brake
Cockpit
- Handlebar: CUBE Rise Trail Bar 35
- Stem: CUBE Performance Stem E-MTB 35, FPI-Link
- Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
- Grip: ACID Disrupt, Soft Compound
Seating
- Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- Saddle: ACID Venec EMTB Trail 140
Wheels
- Rim: Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
- F: Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4 | R: Schwalbe Tacky Chan, Super Gravity, LIGHT(S)
E-Bike System
- Motor/Drive: UNIT Bosch Drive Unit Performance Line CX
- Smart System
- Motor: POWER (WATTS)
- Motor: TORQUE (NM)
- Battery: Bosch PowerTube
Weight
- 24.3 kg
