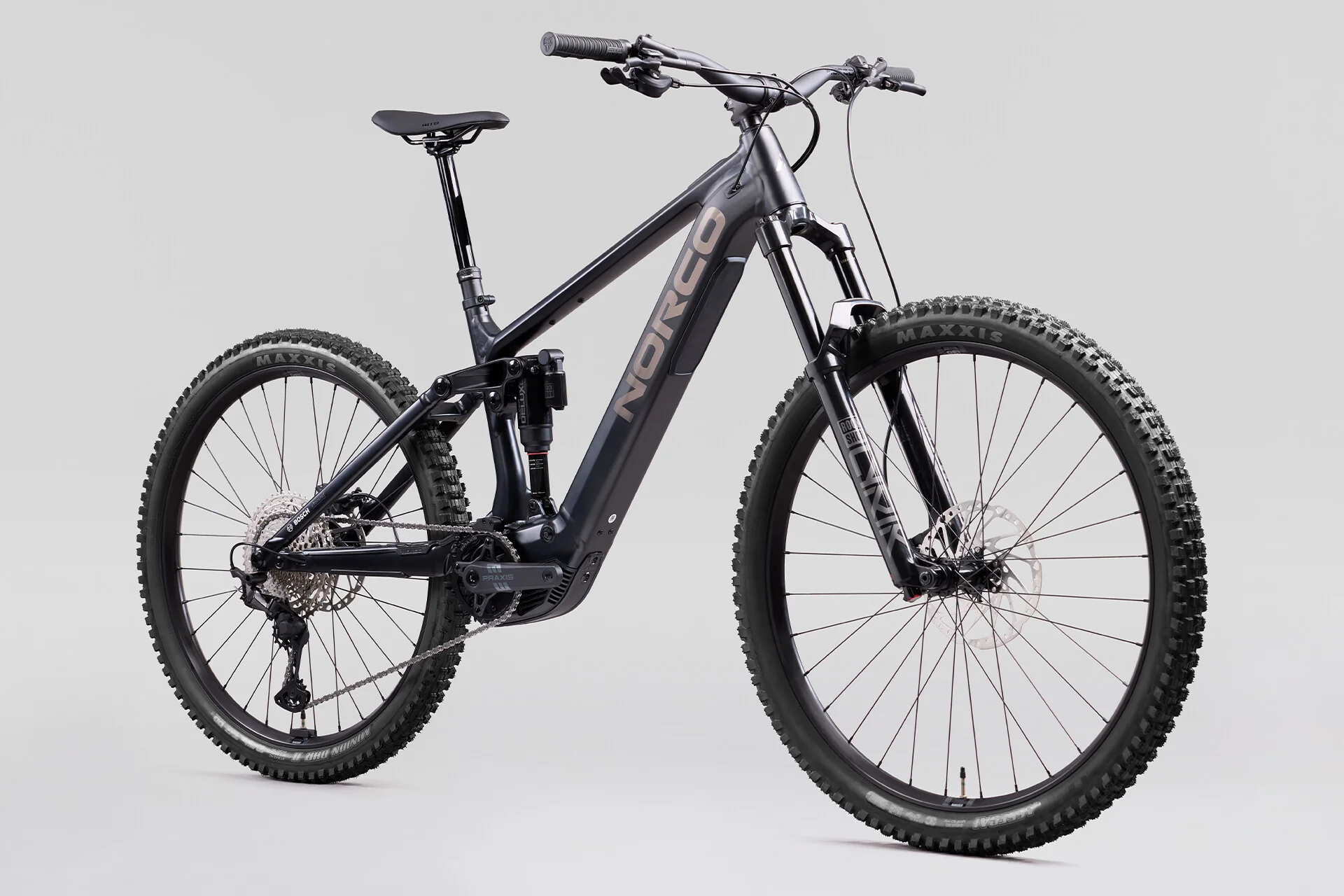

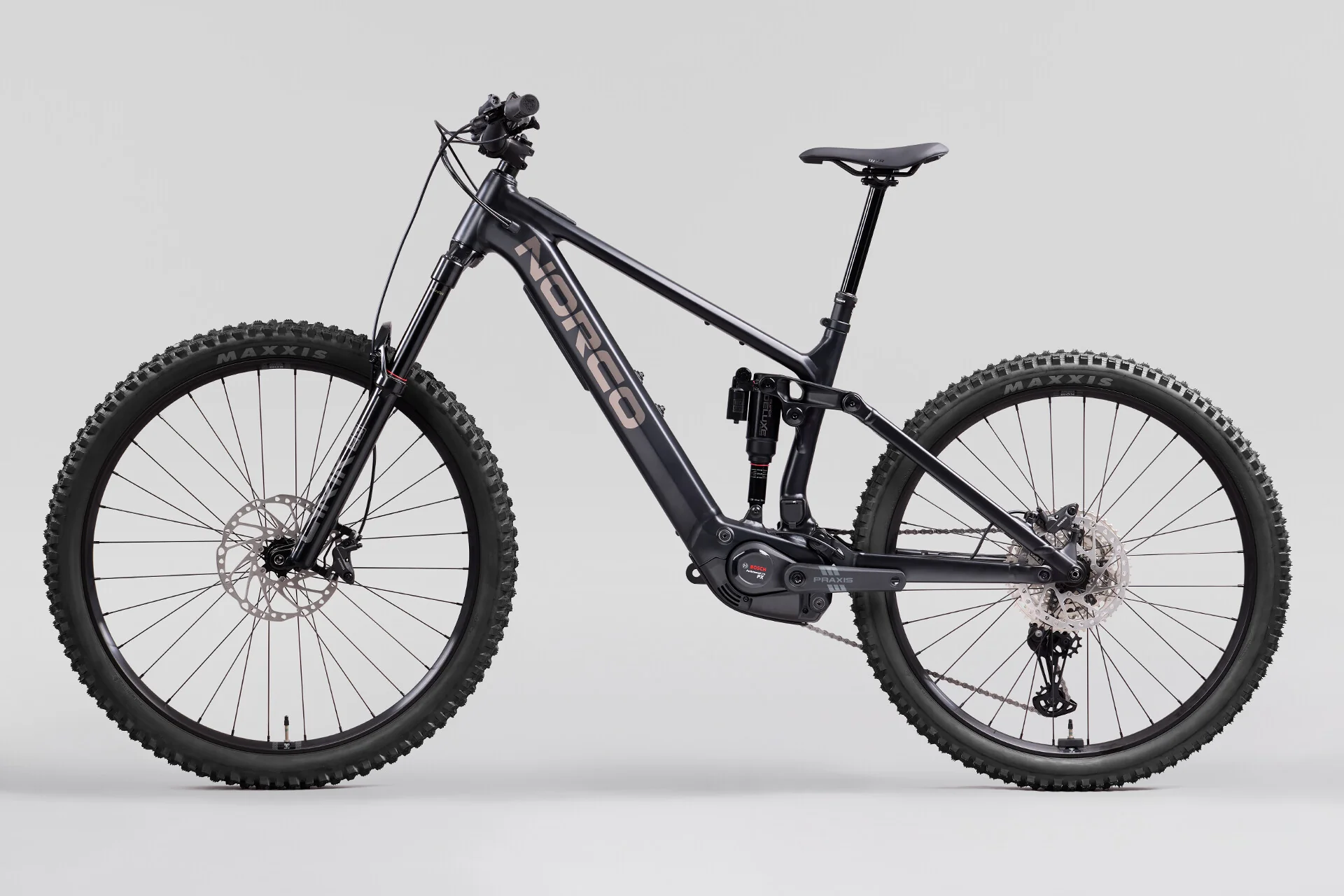

Sight VLT PX delivers full-powered, all-mountain performance without compromise – with VPS, our proven Horst Link suspension system, a durable and lightweight aluminum frame, reliability from Bosch with the Performance Line PX drive system. It’s the go-to for riders that want real torque, solid battery capacity, and confident handling. Everything you need and nothing you don’t, for a ride that’s premium where it counts and efficient where it matters.

Frame
• Aluminum Frame
• 150mm Travel
• UDH Compatible
• Eagle Transmission Compatible
• Ride Aligned™ Design

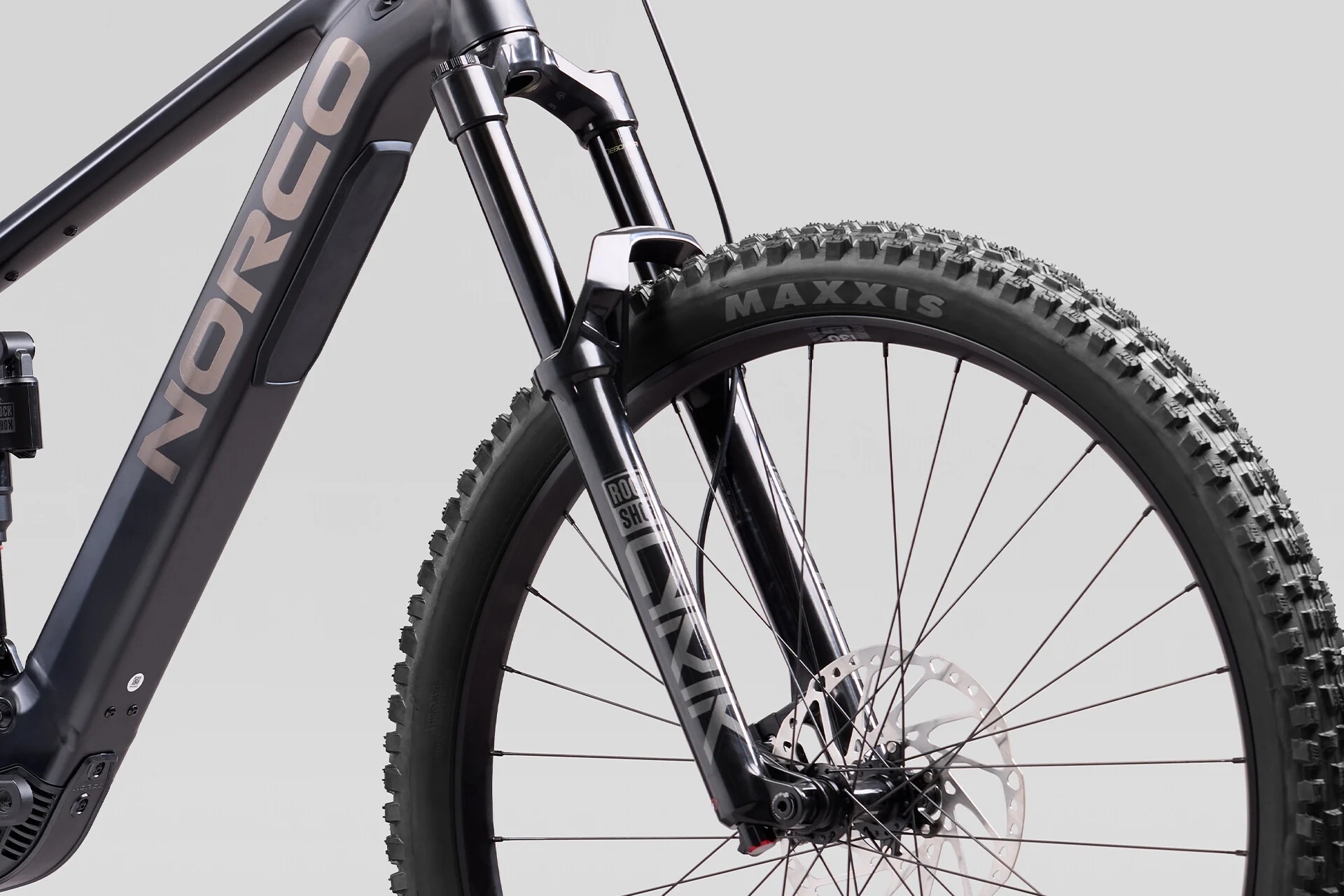

Suspension
• Fork: RockShox Lyrik Base RC, 160mm, 44mm Offset
• Fender Included

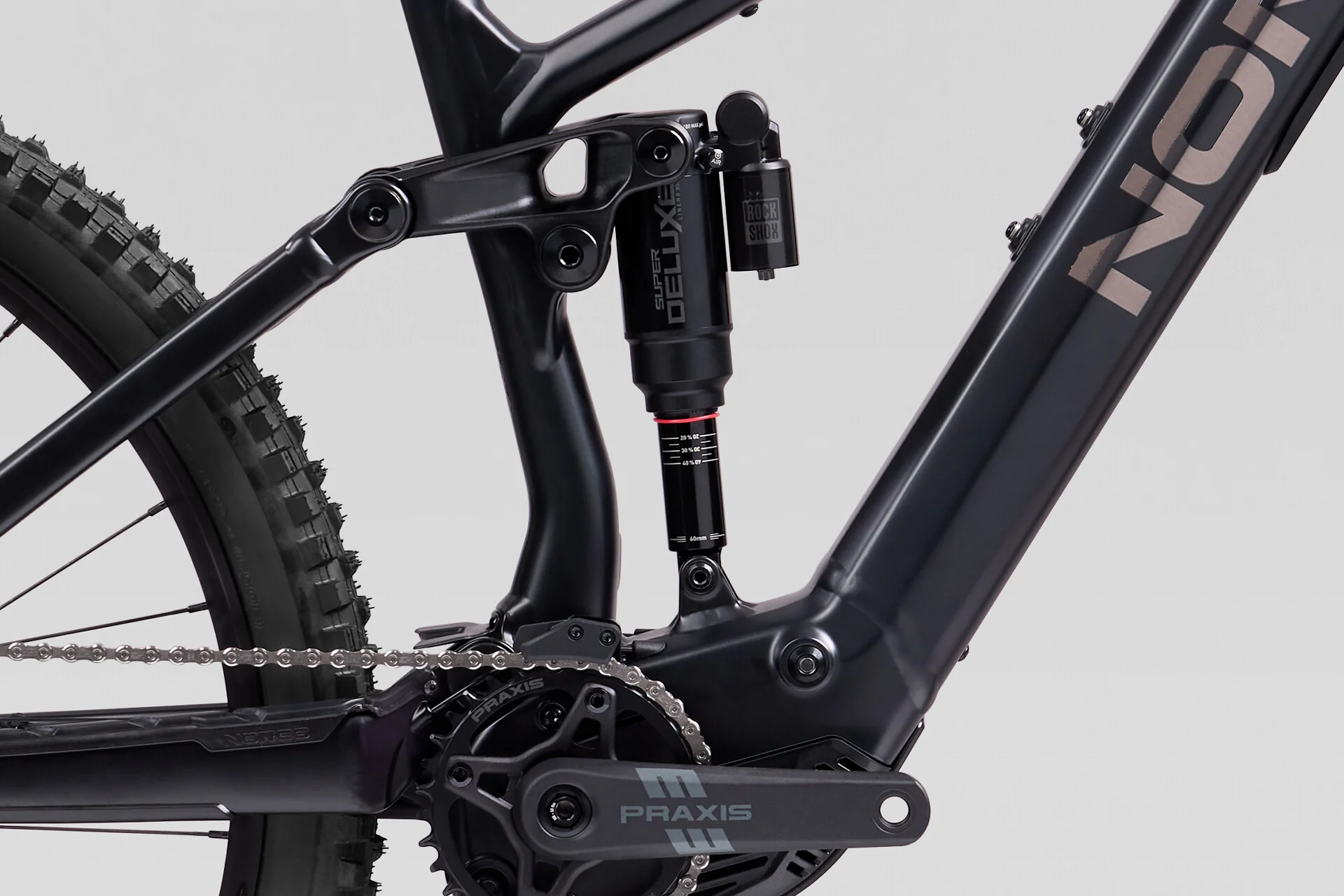

• Rear Shock: RockShox Super Deluxe Base w/ HBO, 205x60 Trunnion

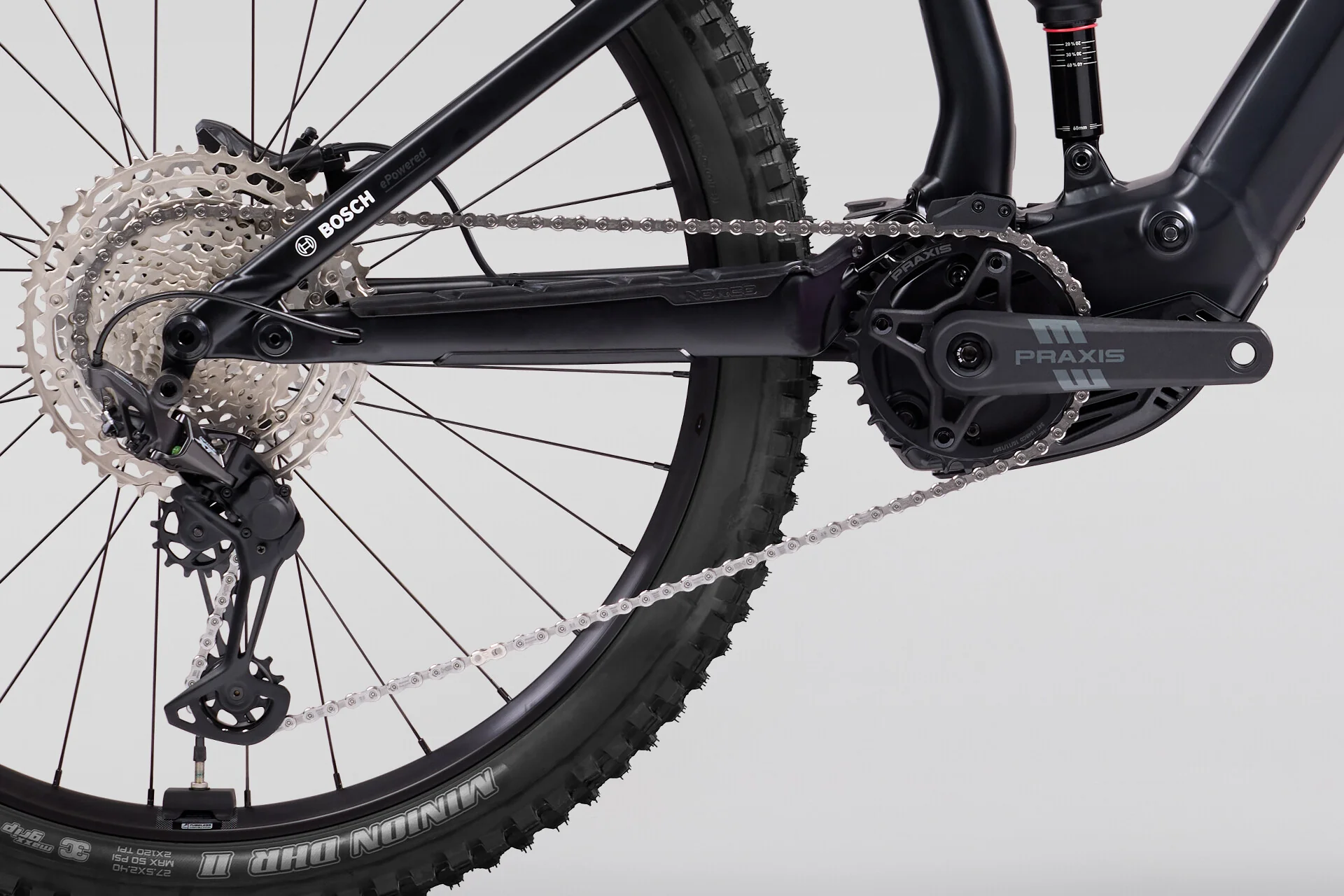

Drivetrain
• Shifter: Shimano Deore SL-M6100-R, 12spd
• Rear Derailleur: Shimano XT RD-M8100 SGS, 12spd
• Cassette: Shimano Deore CS-M6100-12, 10–51t
• Chain: Shimano Deore CN-M6100, 12spd
• Crankset: Praxis HD Aluminum Bosch Cranks, 34T
• Crank Length: S1–S3: 155mm / S4–S5: 160mm
• Drive Unit: Bosch PX

Brakes
• Brakes: Shimano Deore M6120 4-Piston, Metallic Pads
• Brake Levers: Shimano Deore M6100
• Front Rotor: Shimano RT-64, 203mm, Center Lock
• Rear Rotor: Shimano RT-64, 180mm, Center Lock

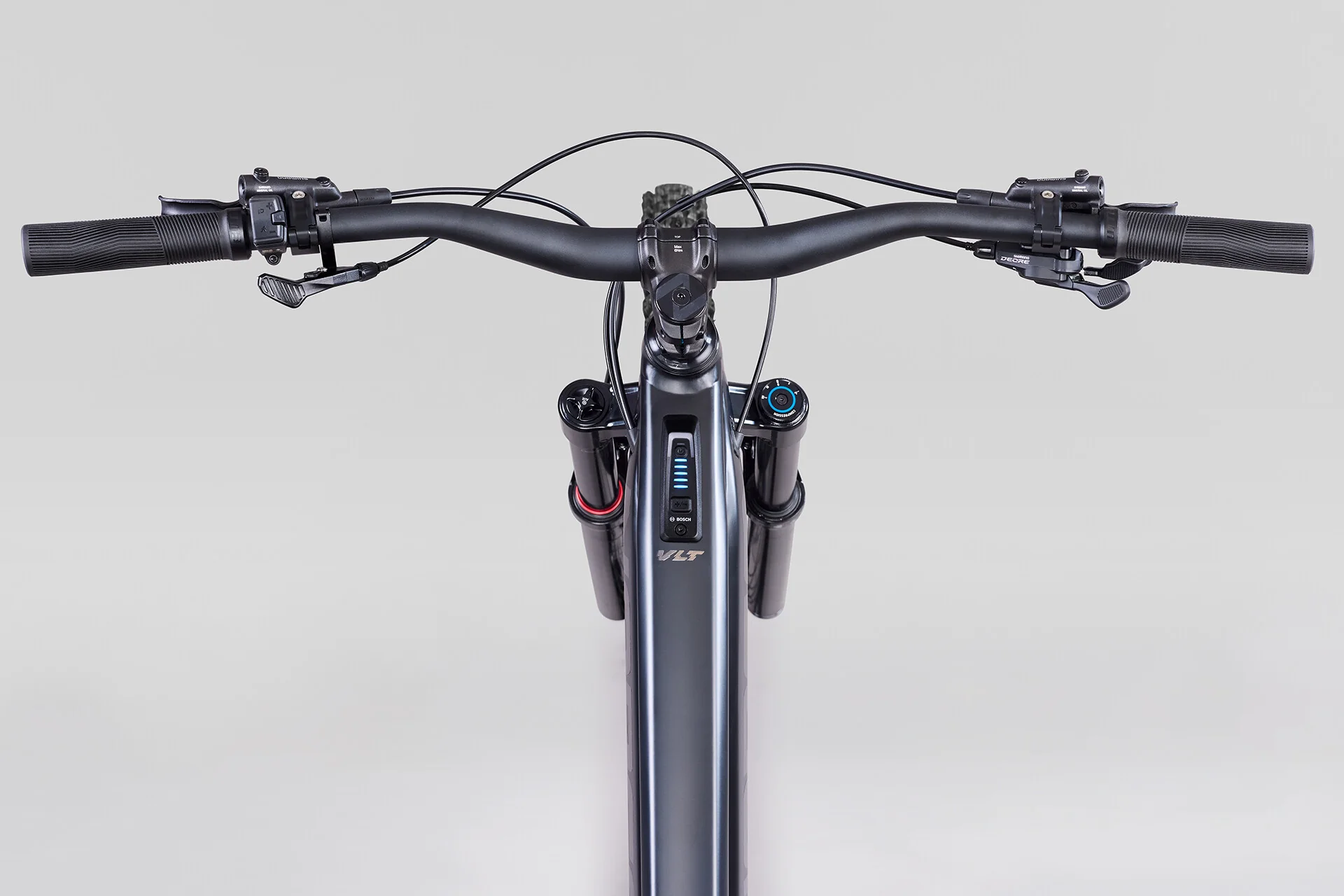

Cockpit
• Handlebar: Norco 6061 DB Alloy, 800mm
• Rise: S1–S2: 25mm / S3–S5: 35mm
• Stem: Norco 6061 Alloy, 40mm, 35mm Clamp
• Grips: WTB Wavelength, 140mm
• Headset: FSA No.55 Sealed Bearing, Tapered 1-1/8"–1.8"

Seating
• Saddle: WTB Solano Medium, Steel Rails
• Seatpost: TranzX YSI160 RAD+, 31.6
• Dropper Travel: S1: 125mm / S2: 150mm / S3: 170mm / S4–S5: 200mm

Wheels
• Rims: WTB KOM Trail i30 TCS 2.0, 30mm, 32h
• Front Hub: Shimano HB-MTC500-15-B, 15x110 Boost, Center Lock
• Rear Hub: Shimano FH-TC500-MS-B, 12x148 Boost, MicroSpline, Center Lock
• Spokes: Sapim Sprint DB, Black Stainless Steel
• Front Tire: Maxxis Assegai 29x2.5, 3C MaxxGrip EXO+
• Rear Tire: Maxxis Minion DHR II 27.5x2.4, 3C MaxxGrip DoubleDown

E-Bike System
• Drive Unit: Bosch Performance Line PX, 90Nm / 700W
• Battery: Bosch PowerTube 600Wh
