The Revolver C2 130 has 130 mm of travel on the front and 120mm on the rear. With a half-degree slacker head tube angle this bike will go double duty on trail rides as well as spicy XC race days. You'll be amazed at what a 130/120 travel bike can do. Unlock all the secret lines—if you love light, fast, and playful all-day adventures, this one is for you.

Specs

Frame
• Carbon Frame
• 120mm Travel
• UDH Compatible
• Eagle Transmission Compatible
• Ride Aligned™ Design

Suspension
• Fork: Fox 34SL Performance Float
• Grip 2 Damper
• 130mm Travel
• 44mm Offset
• Rear Shock: Fox Float SL Performance, 190x45

Drivetrain
• Shifter: Shimano Deore XT Di2 SW-M8250-IR, 12spd
• Rear Derailleur: Shimano Deore XT Di2 RD-M8250 SGS, 12spd
• Cassette: Shimano Deore CS-M6100-12, 10–51t
• Chain: Shimano Deore CN-M6100-12, 12spd
• Crankset: Shimano Deore FC-M6120, 32T, CL55
• Crank Lengths:
• S1: 165mm
• S2–S3: 170mm
• S4–S5: 175mm
• Bottom Bracket: Shimano BB-MT501, BSA 73mm

Brakes
• Brakes: Shimano Deore MT520, 4-Piston, Metallic Pads
• Brake Levers: Shimano Deore MT501
• Front Rotor: Shimano SM-RT64, 180mm, Center Lock
• Rear Rotor: Shimano SM-RT64, 180mm, Center Lock

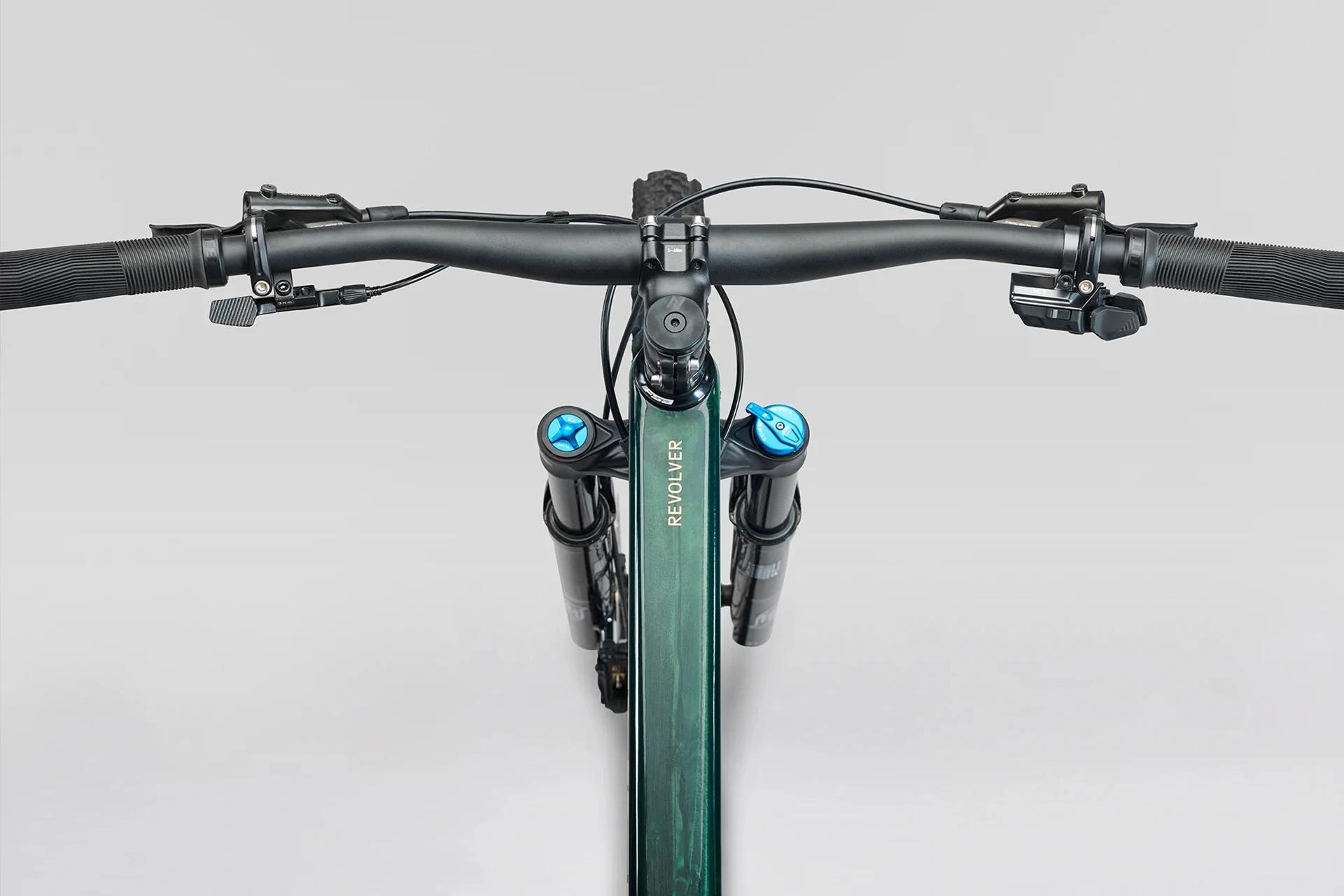

Cockpit
• Handlebar: Norco 6061 Alloy
• Widths:
• S1–S3: 760mm
• S4–S5: 780mm
• Rise: 20mm
• Stem: Norco 6061, 50mm, 35mm Clamp
• Grips: WTB Wavelength
• Headset: FSA No.42/48ACB Integrated Headset
• Tapered 1-1/8"–1.5"

Seating
• Saddle: WTB Silverado Medium
• Seatpost: TranzX YSI36, 31.6
• Dropper Travel:
• S1–S2: 120mm
• S3: 150mm
• S4: 170mm
• S5: 200mm
• Seat Clamp: Norco Bolted Clamp, 34.9mm ID

Wheels
• Rims: Stan’s Arch D, 28mm ID, 32h, 29"
• Front Hub: Shimano Deore HB-TC500, 15x110 Boost, Center Lock, 32h
• Rear Hub: Shimano Deore FH-TC500, 12x148 Boost, MicroSpline, Center Lock, 32h
• Rear Axle: 148x12 TA, L174, TL13, M12x1.4
• Spokes: Stainless Steel
• Tubeless Valves: Stan’s Tubeless Valves
• Sealant: Stan’s 250ml
• Front Tire: Maxxis Forekaster 29x2.4, 3C MaxxTerra EXO
• Rear Tire: Maxxis Rekon 29x2.4, 3C MaxxTerra EXO
