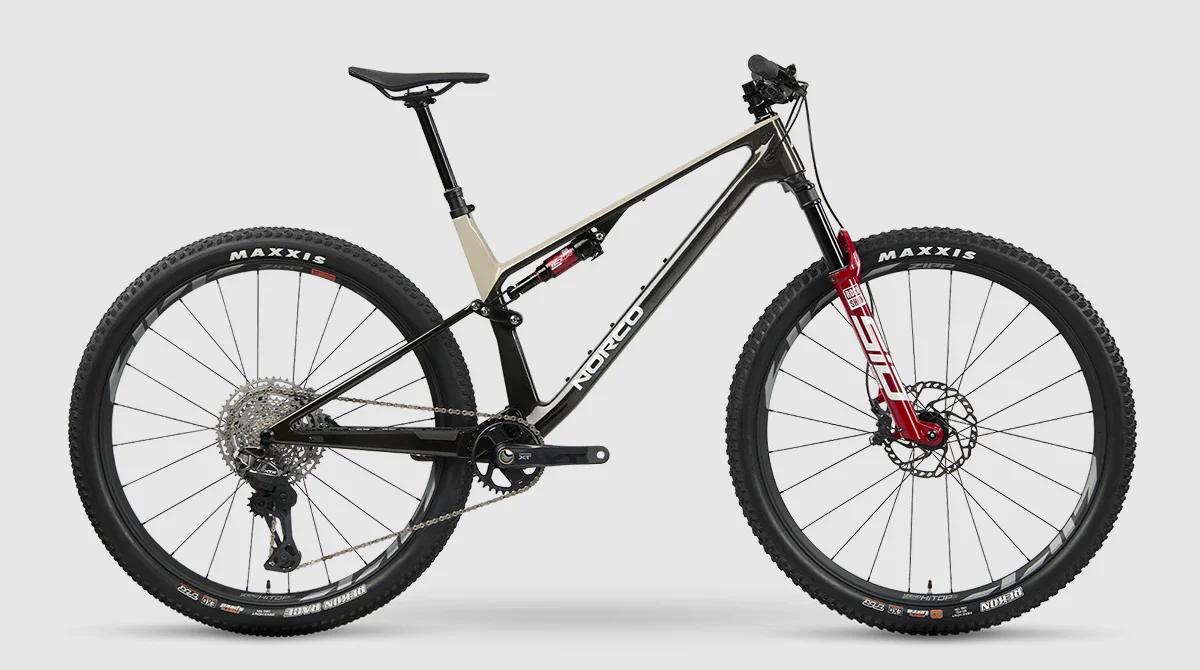

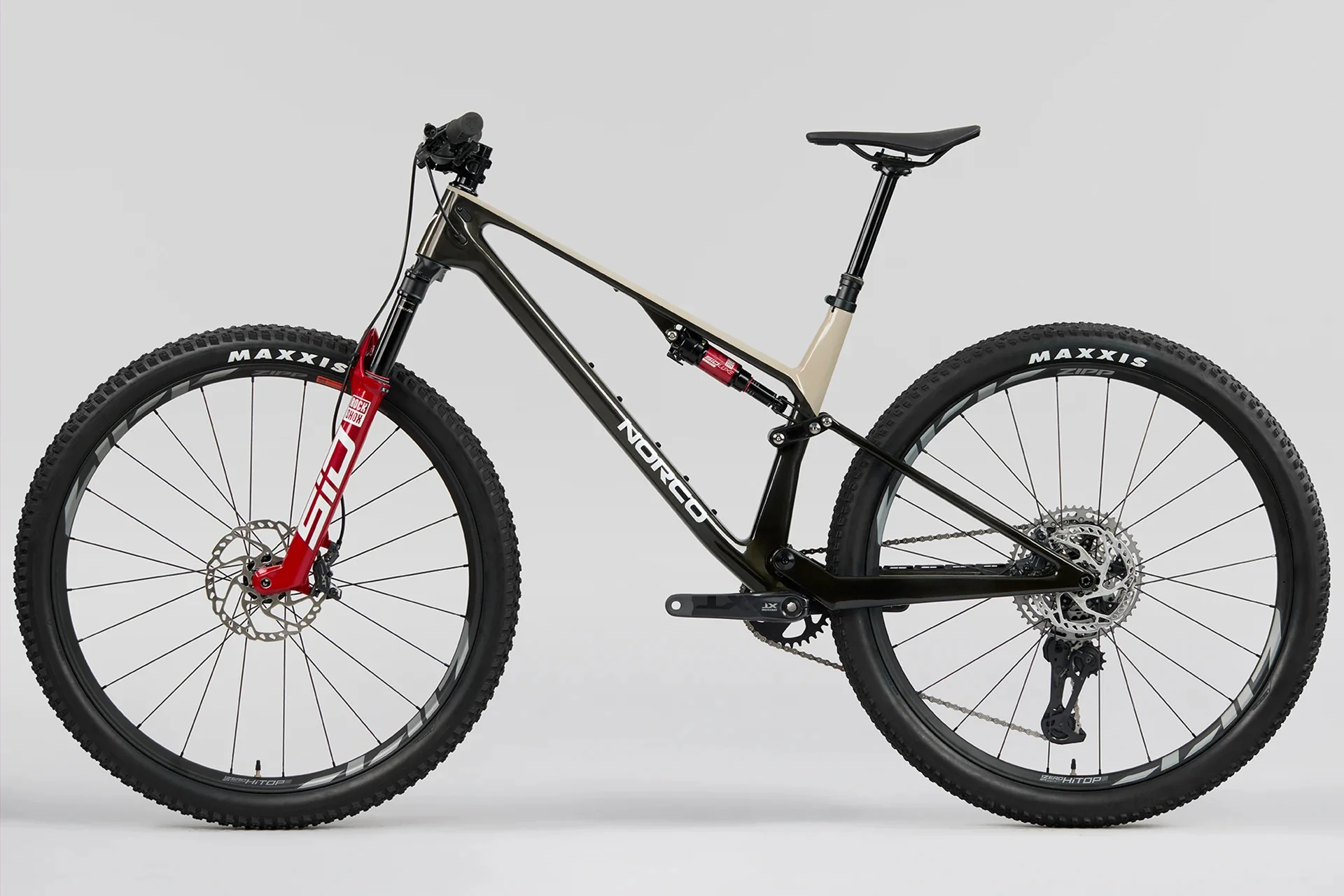

26 Norco Revolver C1 120 - Grey/Black -
Revolver C1 120 sets the bar for what a Cross-Country bike can do. With 120 mm of front travel and 115 mm at the rear, it's fast, efficient, and capable.
Quick and snappy on acceleration, whether you're going up or ready to rip down, its suspension performance is well beyond what you can expect from a shorter travel bike. Head out for epic days, attack climbs, and crush descents, while cruising through the singletrack; it's the best choice for stage races or all-day adventures.
Specs
Frame
• Carbon Frame
• 115mm Travel
• UDH Compatible
• Eagle Transmission Compatible
• Ride Aligned™ Design
Suspension

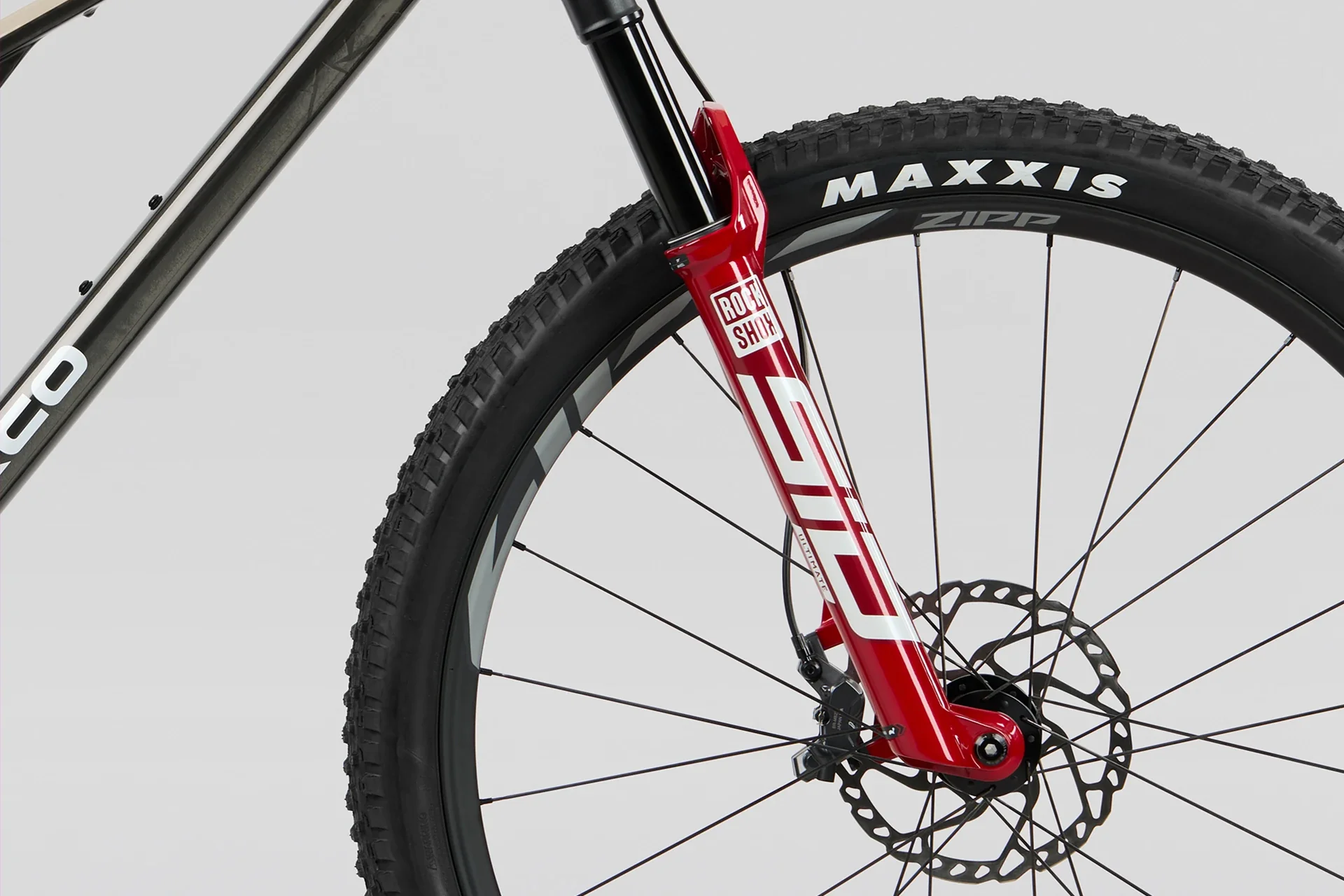

• Fork: RockShox SID Ultimate 3P
• 120mm Travel
• 44mm Offset

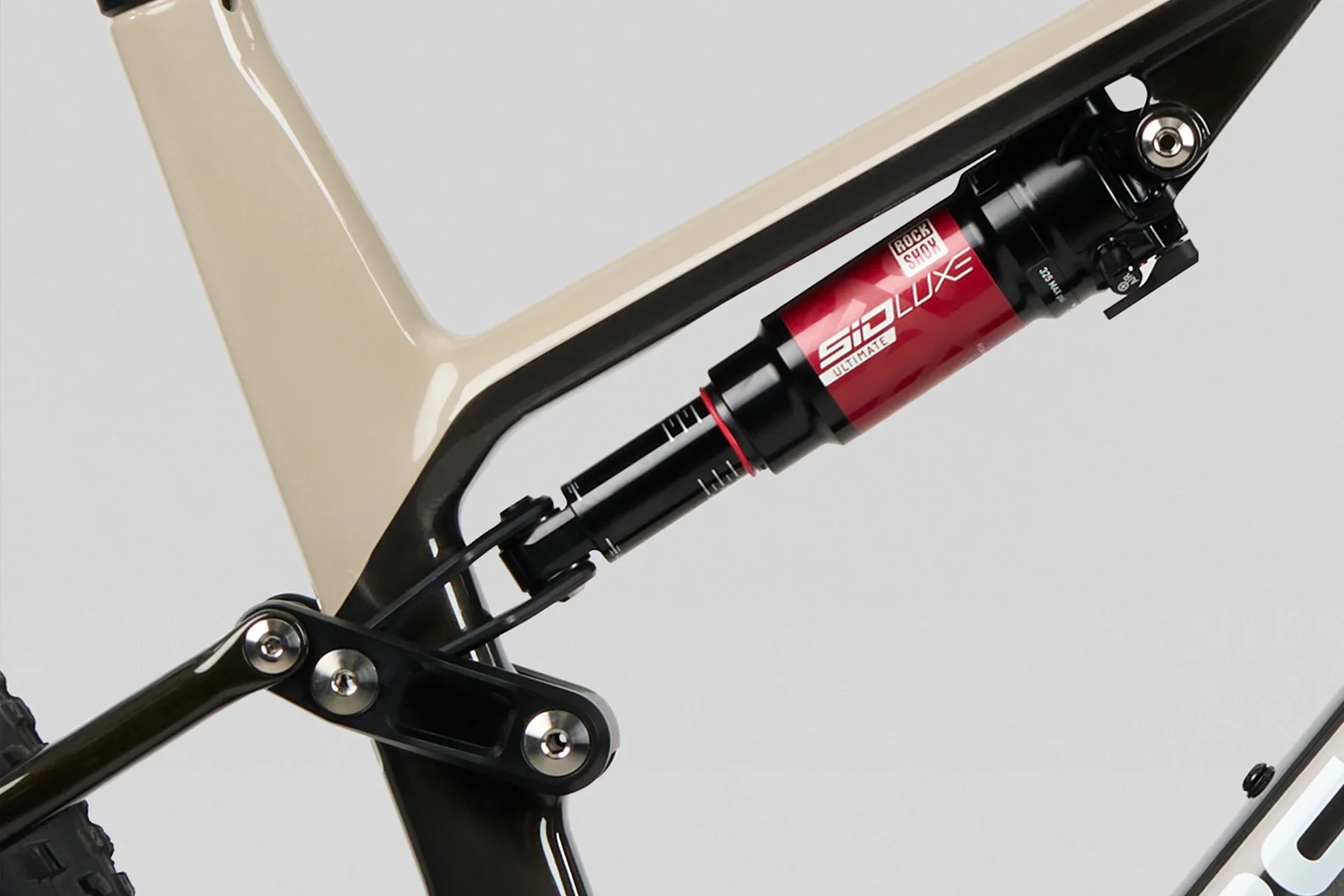

• Rear Shock: RockShox SIDLuxe Ultimate, 190x42.5
Drivetrain
• Shifter: Shimano XTR SW-M9250-IR, I-Spec
• Rear Derailleur: Shimano XTR RD-M9250 Di2 SGS, 12spd
• Cassette: Shimano XTR CS-M9200-12, 10–51t
• Chain: Shimano XTR CN-M9100, 12spd
• Crankset: Shimano Deore XT FC-M8200, 34T, CL55
• Crank Lengths:
• S1: 165mm
• S2–S3: 170mm
• S4–S5: 175mm
• Bottom Bracket: Shimano BB-MT501, BSA 73mm
Brakes
• Brakes: Shimano Deore XT BR-M8220, Metal Pads
• Brake Levers: Shimano Deore XT BL-M8220
• Front Rotor: Shimano SM-RT66, 180mm, 6-Bolt
• Rear Rotor: Shimano SM-RT66, 160mm, 6-Bolt
Cockpit

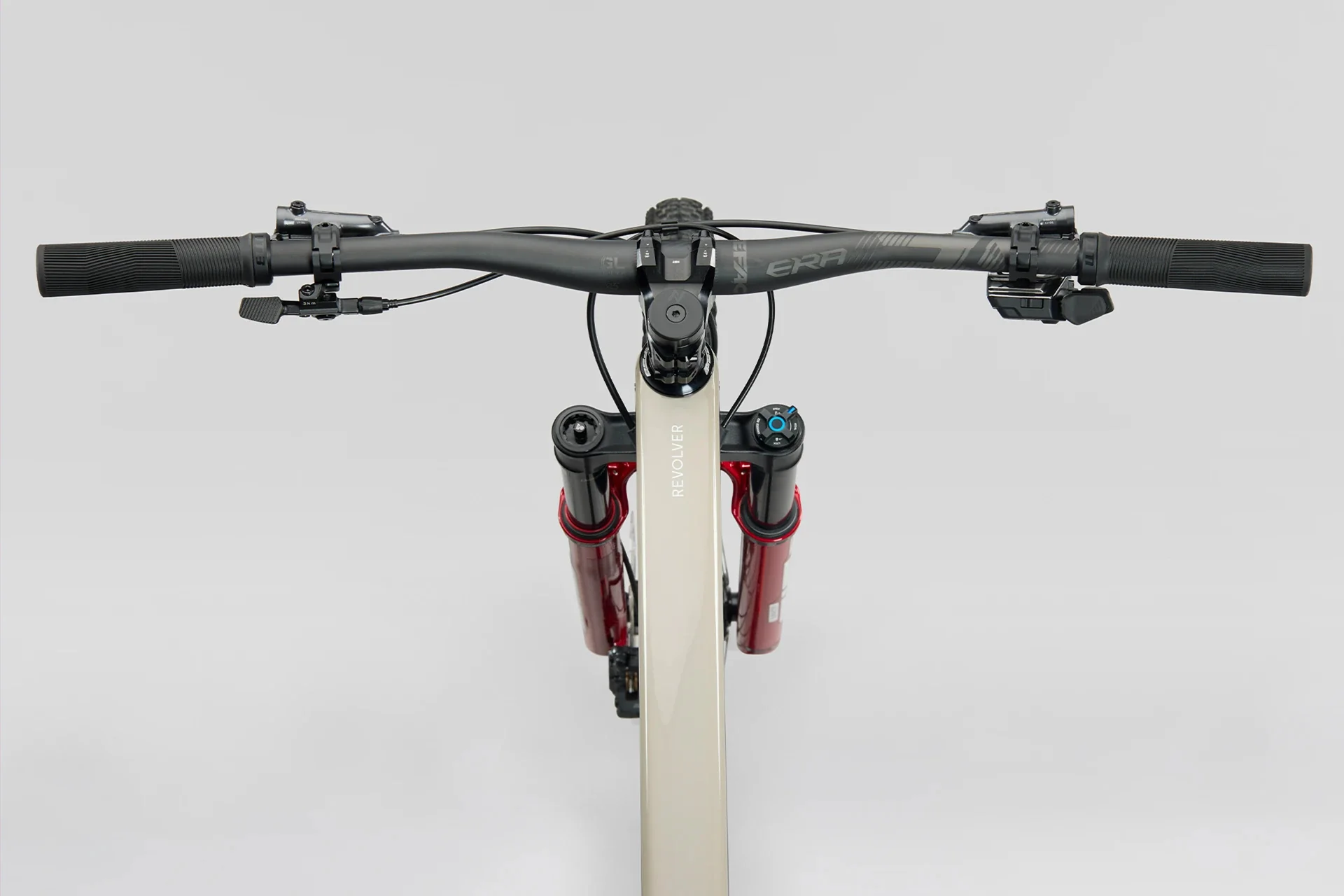

• Handlebar: Race Face ERA35
• Widths:
• S1–S2: 760mm
• S3–S5: 780mm
• Rise: 20mm
• Stem: Alloy CNC, 50mm, 35mm Clamp
• Grips: WTB Wavelength
• Headset: FSA No.42/48ACB Integrated Headset
• Tapered 1-1/8"–1.5"
Seating
• Saddle: Fizik Terra Ridon MG Rail
• Seatpost: TranzX YSI36, 31.6
• Dropper Travel:
• S1–S2: 120mm
• S3: 150mm
• S4: 170mm
• S5: 200mm
• Seat Clamp: Norco Alloy Nutted Clamp, 34.9mm ID
Wheels
• Rims: Zipp 1Zero Hitop S Carbon, 30mm ID, 29"
• Front Hub: Zipp 1Zero Hitop S, 15x110 Boost, 6-Bolt
• Rear Hub: Zipp 1Zero Hitop S, 12x148 Boost, MicroSpline, 6-Bolt
• Rear Axle: 148x12 TA, L174, TL13, M12x1.3
• Spokes: CX-Sprint
• Tubeless Valves: Zipp Tubeless Valves
• Sealant: Stan’s 250ml
• Front Tire: Maxxis Rekon 29x2.4, 3C MaxxTerra EXO
• Rear Tire: Maxxis Rekon Race 29x2.4, 3C MaxxSpeed EXO
