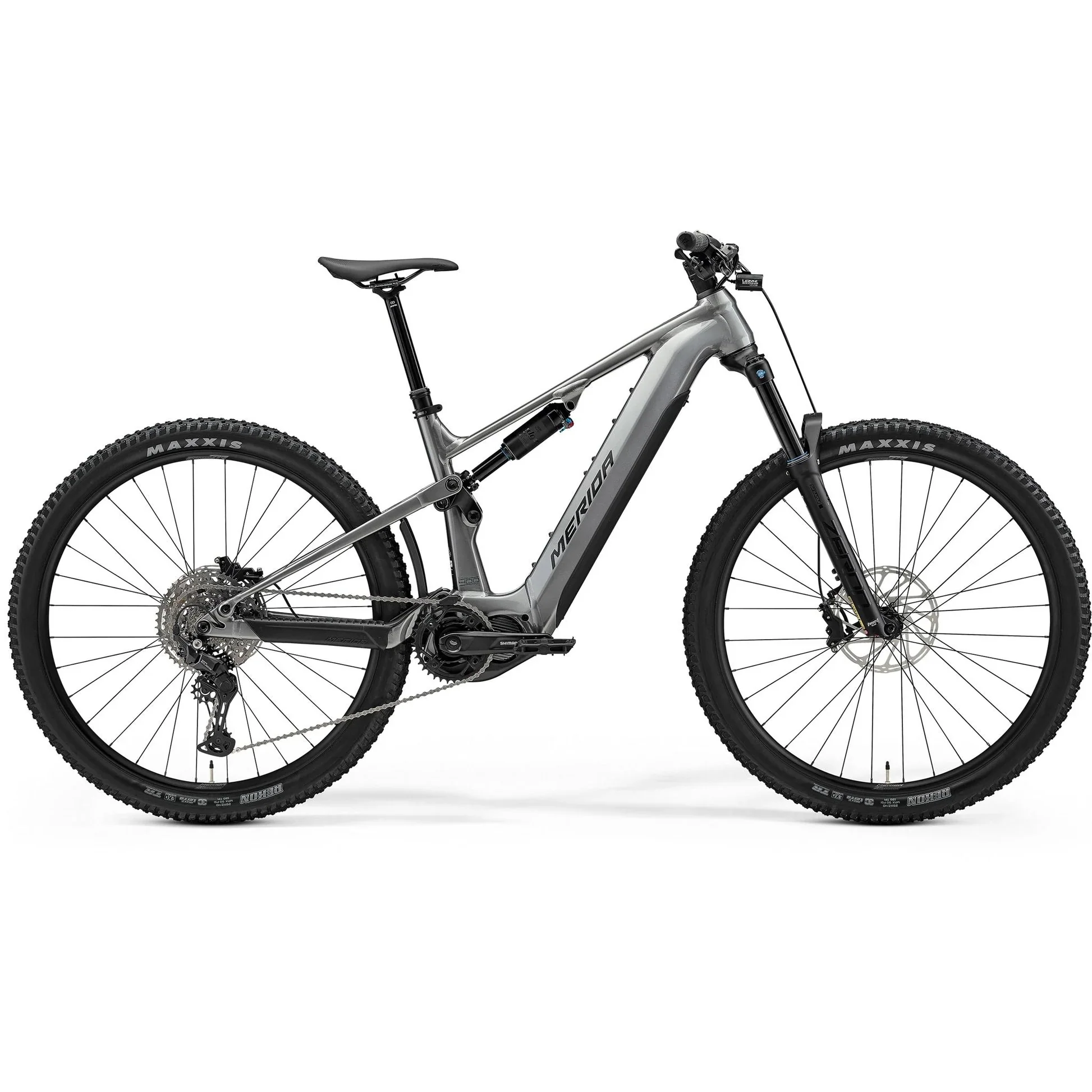

The Merida eOne-Forty 400 Electric Trail Bike in Gunmetal Grey/Black is designed for those who crave adventure on rugged terrains. Equipped with a powerful Shimano motor delivering 85Nm of torque, this e-bike ensures a smooth and efficient ride, even on steep inclines. The 630Wh Shimano battery provides long-lasting power, allowing you to explore further without worrying about recharging. Its robust alloy frame and 130mm rear travel offer durability and comfort, while the hydraulic disc brakes ensure reliable stopping power in all conditions. Whether you're tackling challenging trails or enjoying a leisurely ride, the Merida eOne-Forty 400 is your perfect companion.

ACCESSORIES    Fender: EOF-204
AXLES    R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
BRAKES    F: Sram DB4 stealth; 4 piston | R: Sram DB4 stealth; 4 piston
CASSETTE    Shimano LG400; 11-48 ATC; 10 GER
CHAIN    Shimano LG500
COLOUR    GUNMETAL GREY(BLACK)
CRANKSET    FSA 1x Steel Chainring; 36 ATC; Shimano FC-EM600; 165 mm for all sizes
DERAILLEUR REAR    Shimano CUES U6000 ; GS
FORK    SF25-ZERON36X-BOOST
FRAME    eONE-FORTY LITE IV; MAT aluminium; 133 STR; 27.5x2.8" max. WHS; 148x12 AST; intube
GRIP     MERIDA EXPERT EC
HANDLEBAR     MERIDA EXPERT eTR; 780 WHB;
HANDLEBAR STEM     MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes
HEADSET     Acros ICR MERIDA EXTERNAL neck w/ Blocklock
HUBS     F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
LIGHT(S)     F: Lezyne Hekto StVZO E350+ Reverse; reverse MERIDA Custom Mount | R: USB REAR Light CG-214RG
PEDALS     VP VPE-533
RIM    MERIDA COMP TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"
ROTOR FRONT     Sram CenterLine; 200mm
ROTOR REAR     Sram CenterLine; 200mm
SADDLE     MERIDA COMP SL; V-mount; incl. MERIDA minitool
SEAT CLAMP     MERIDA EXPERT
SEAT POST     MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT
SHIFTERS     F: Shimano SL -MT500-LA | R: Shimano CUES U6000-10
SHOCK     SR Suntour Edge Plus; platform
SPOKES     Black stainless ; black nipples
TYRES    F: MAXXIS REKON; 29x2.4"; fold; 3C EXO MaxxTerra | R: MAXXIS REKON; 29x2.4"; fold; TR 3C EXO MaxxTerra
MOTOR/DRIVE UNIT     Shimano EP801; 85Nm; 25KPH
MOTOR BRAND    Shimano
MOTOR MODEL    STePS EP801
MOTOR POWER (WATTS)     250
MOTOR TORQUE (NM)     85
BATTERY     Shimano EN806; 630Wh Shimano; NO Range Extender compatibility
BATTERY BRAND    Shimano
BATTERY MODEL    Shimano EN806
BATTERY SIZE (WATT-HOURS)     630
EBIKE DRIVE SYSTEM    Mid Drive
