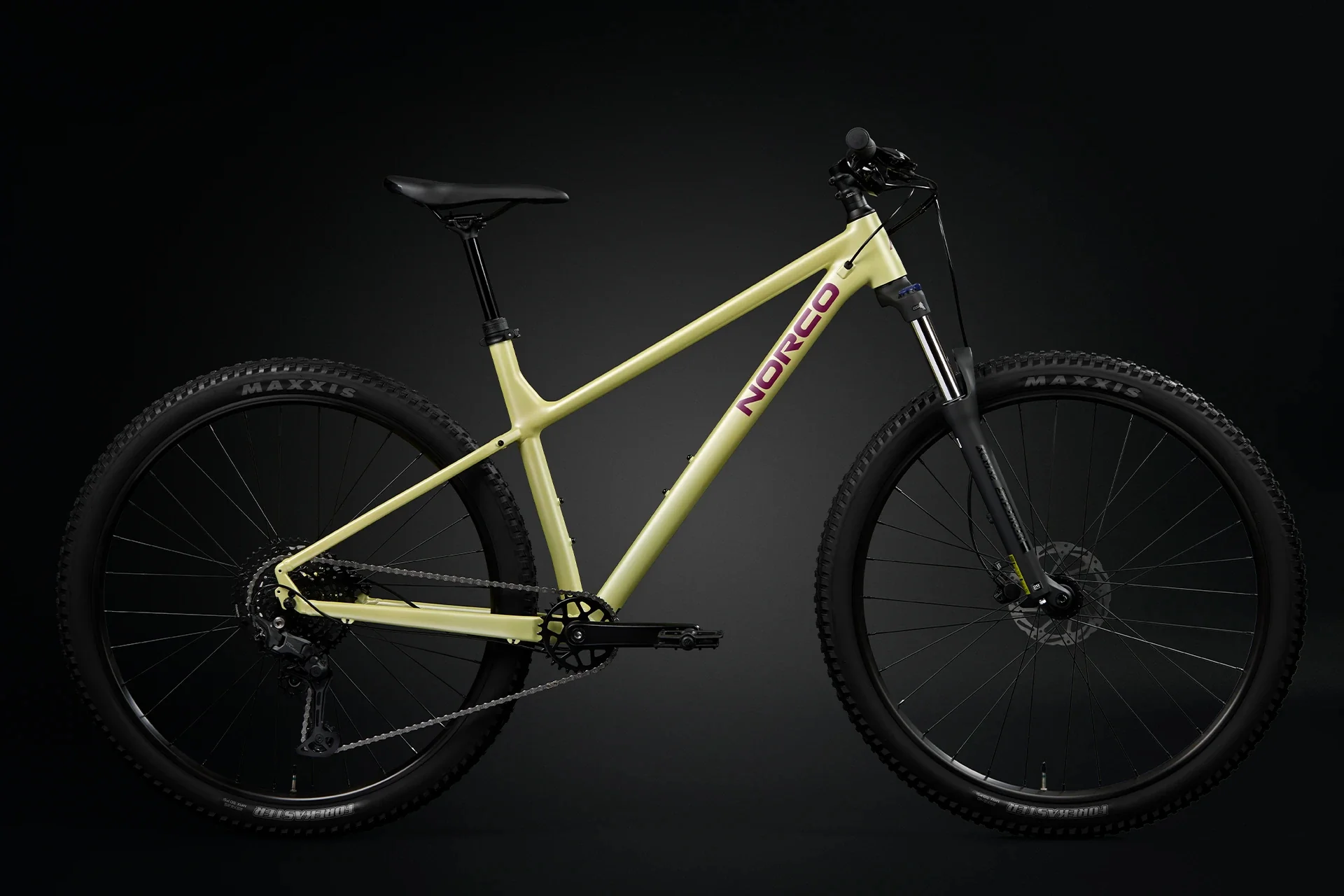

A staple in the lineup as a progressive off-road bike to take on your next adventure. An all-around bike for city or trails, to discover your favourite way to ride.

Design features

• With a lightweight aluminum frame with custom tube shapes, a full breadth of frame sizes, rack and fender mounts, and dual water bottle mounts – it's ready to go anywhere, with anyone.
• The Storm provides a more forward weight distribution within an extended wheelbase for powerful, efficient pedaling, increased climbing traction, and added grip and control on descents.

Specifications

• Frame
  • Aluminum Frame
  • Smooth Welded Construction
  • Tapered Head Tube
  • 10x135 QR Rear Spacing

  Suspension
  • Fork: SR Suntour XCM32LO
  • Lockout
  • 120mm Travel
  • 46mm Offset
  • 15x100 Front Axle

  Drivetrain
  • Shifter: Shimano CUES SL-U6000-10R, 10spd
  • Rear Derailleur: Shimano CUES RD-U6000 GS, 10spd
  • Cassette: Shimano CUES CS-LG300-10, 11–48t, 10spd
  • Chain: KMC CUES XGlide 9/10/11spd
  • Crankset: Prowheel Alloy, 30T
  • Crank Lengths:
  • S–M: 170mm
  • L–XXL: 175mm
  • Bottom Bracket: Cartridge ST 73mm, 113mm Axle

  Brakes
  • Front Brake: Tektro HD-M275, Resin Pads
  • Rear Brake: Tektro HD-M275, Resin Pads
  • Brake Levers: Tektro HD-M275
  • Front Rotor: Tektro 160mm, 6-Bolt
  • Rear Rotor: Tektro 160mm, 6-Bolt

  Cockpit
  • Handlebar: 6061 Alloy DB
  • Widths:
  • S: 750mm
  • M–XXL: 780mm
  • Rise: 30mm
  • Stem: Alloy, 50mm, 31.8 Clamp
  • Grips: DDK Lock-On, 139mm
  • Headset: Sealed Cartridge Bearings
  • Tapered 1-1/8"–1.5" (IS42/28.6 | IS52/40)
  • Headset Spacers: 3 x 10mm

  Seating
  • Saddle: Norco XC, Steel Rails
  • Seatpost: X-Fusion Manic LC, 31.6mm
  • Travel:
  • S: 100mm
  • M–XXL: 125mm
  • Seat Clamp: Norco Alloy Bolted, 34.9mm

  Wheels
  • Rims: DP 27, 27mm ID, 32h
  • Front Hub: Formula DC51, 15x100, 6-Bolt, 32h
  • Rear Hub: Formula DC-1422, 10x135 QR, HG, 6-Bolt, 32h
  • Spokes: Stainless Steel, 14g
  • Tires: Maxxis Forekaster
  • S Size: 27.5 x 2.35"
  • M–XXL: 29 x 2.35"

  Pedals
  • Nylon Flat Pedals

  Weight
  • 14.59kg / 32.1lbs (Size L)
