The Scene VLT is a 2x award winning, ultra-versatile, relaxed electric hybrid that gets around easily. With a flat bar and comfortable upright riding position, the Scene VLT replaces the need for a car in the city. With the Shimano STEPS motor, and 504Wh battery, the Scene VLT makes even the hilliest rides no sweat at all.

Frame
• Double Butted Alloy E-Bike Frame
• Internal Cable Routing

Fork
• Aluminum Fork w/ Light Mount
• 12x100 Thru Axle
• Post Mount

Drivetrain
• Shifter: Shimano CUES SL-U4000-9R, 9spd
• Rear Derailleur: Shimano CUES RD-U4020 SGS, 9spd
• Cassette: Shimano CUES CS-LG300-9, 11–36t
• Chain: KMC eGlide, 9spd
• Crankset: Shimano FC-EM600, 38T, 165mm
• Pedals: City Pedals w/ Traction Inlay, 9/16"

Brakes
• Brakes: Tektro HD-M280 Augria, 2-Piston, Resin Pads
• Front Rotor: Tektro TR160-52, 160mm, 1.8mm, 6-Bolt
• Rear Rotor: Tektro TR160-52, 160mm, 1.8mm, 6-Bolt

Cockpit
• Handlebar: Norco Scene Aluminum, 660mm
• Rise: 60mm
• Backsweep: 30°
• Stem: Norco Aluminum
• Stem Length: S/M: 70mm / M/L: 80mm
• Rise: 17°
• Clamp Diameter: 31.8mm
• Grips: Dual Density Ergonomic Lock-On, 133mm
• Headset: Tapered 1-1/8"–1.5" (ZS44/28.6 | ZS56/40)

Seating
• Saddle: Scene Comfort Saddle w/ Elastomer Suspension
• Saddle Size: 225mm W x 269mm L
• Seatpost: TranzX YSP18PLQ, 31.6, 100mm Dropper
• Seat Clamp: Norco Alloy QR, 31.8mm

Wheels
• Rims: Alloy DW Disc, 27mm ID, 32h
• Front Hub: Formula DC-221T, 15x100 TA, 6-Bolt, 32h
• Rear Hub: Formula DC-142, 12x142 Boost, HG, 6-Bolt, 32h
• Spokes: 13G Stainless Steel w/ Brass Nipples
• Front Tire: Kenda Kwick Seven5 27.5x2.2, 30TPI
• Rear Tire: Kenda Kwick Seven5 27.5x2.2, 30TPI

E-Bike System
• Drive Unit: Shimano EP, 85Nm

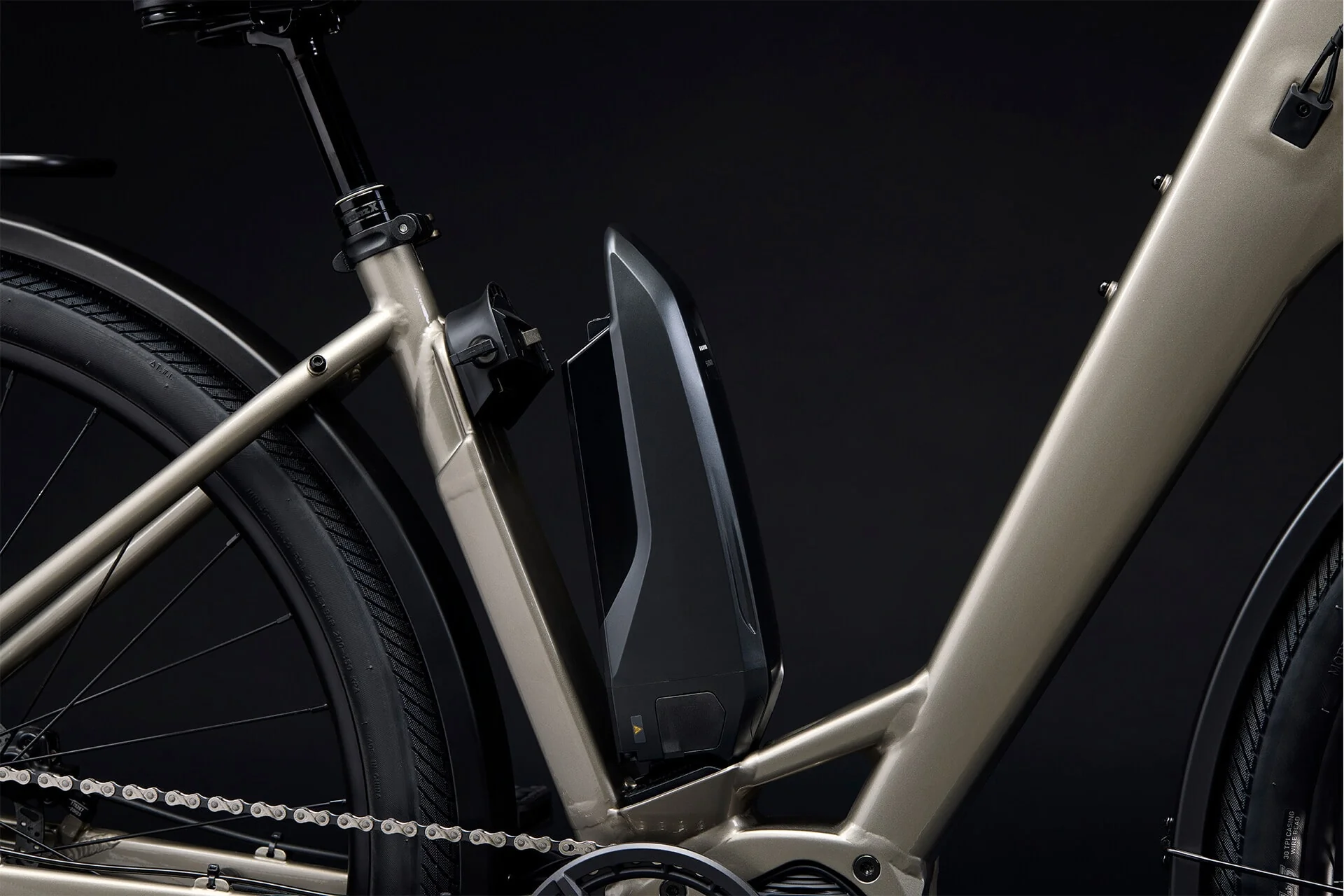

• Battery: Shimano BT-EN605, 504Wh
• Battery Mount: Shimano 504Wh Integrated Battery
