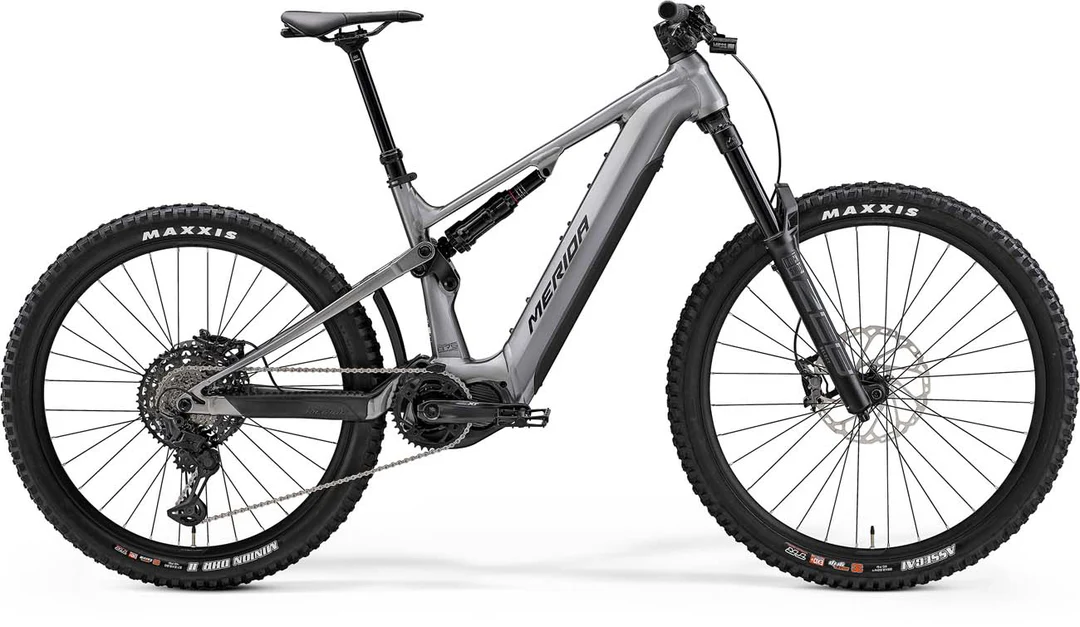

Climb, ride, repeat. Our durable aluminium e-bike frame gets a removable 750 Wh battery and an optional 360 Wh extender for a huge range, all paired with our award-winning suspension and geometry plus durable, high-performance kit from RockShox and Shimano.

*Fourth generation LITE aluminium frame with 174 mm rear wheel travel
*Rockshox Zeb fork with 170 mm travel and Super Deluxe rear shock
*Hardwearing Shimano XT Linkglide drivetrain and MERIDA tubeless-ready wheelset
*User-removable 750 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
*Mixed wheel size as standard with option to full 29"
*Reach-based AGILOMETER sizing system with 30-230 mm adjustable dropper post



FRAME     eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh
SHOCK     Rock Shox Super Deluxe Select
FORK     Rock Shox ZEB Select; Air; 170 STR; Tapered; 44mm fork offset; 29x2.8" max WHS
BRAKE - FRONT     Shimano XT; 4 piston
BRAKE - REAR     Shimano XT; 4 piston
ROTOR - FRONT     Shimano RT64; 220 mm
ROTOR - REAR     Shimano RTEM600; 203 mm
CHAIN     LG500
CHAINWHEEL     FSA 1x Steel Chainring; 36 ATC
CRANK/SIZE     Shimano FC-E8150; 165 mm all sizes;
BB SET     included
DERA - FRONT
DERA - REAR     Shimano XT RDM8130 LinkGlide 11
FREEWHEEL     Shimano LG700; 11-50 ATC; 11 GER
PEDAL     VP VPE-527
GRIP     MERIDA EXPERT EC
H-BAR     MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB
H-B STEM     MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
STEM/SIZE     40 mm all sizes
HEAD SET     Acros ICR MERIDA EXTERNAL neck w/ Blocklock
HUB - FRONT     Shimano XT; 110x15 WHF; 32 SPH; Centerlock
HUB - REAR     Shimano XT; 148x12 WHR; 32 SPH; Centerlock
AXLE - FRONT
AXLE - REAR     MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
RIM     MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
RIM TAPE
SADDLE     PROXIM Nembo Steel; V-mount adapter; incl. MERIDA minitool
SEAT CLAMP     MERIDA EXPERT
SEAT POST     MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT
SHIFTER - FRONT     Shimano SL -MT500-IL
SHIFTER - REAR     Shimano XT M8130 11
INNER TUBE     27.5*2.3/3.0(2.4/2.8) F.V 48L THIN(1MM)
TYRE - FRONT     Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip
TYRE - REAR     Maxxis DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra
BOTTLE CAGE
CARRIER
FENDER     EOF-204
KICKSTAND
LIGHT - FRONT     LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
LIGHT - REAR     LEZYNE LED FEMTO USB REAR STVZO
FRAME LOCK
DRIVE UNIT     Shimano EP801; 85Nm
DRIVE COVER     CR-010 + CR011
BATTERY     Trendpower Internal Battery Gen 2; 750Wh
BATTERY CHARGER     Trendpower EU Smart Charger; 4A
BATTERY LOCK     Abus key
DISPLAY     Shimano SC-EM800
