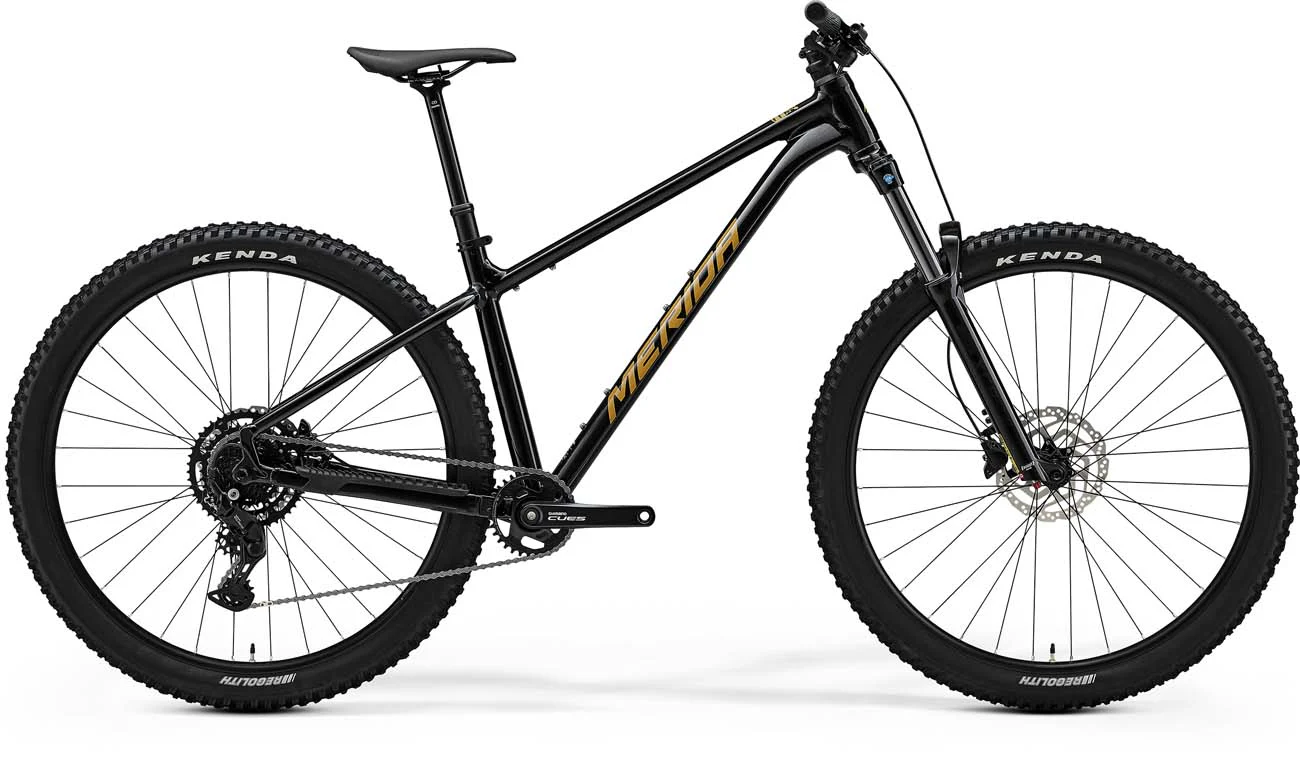

25 Merida Big Trail 300 - Black -

Product image 1

25 Merida Big Trail 300 - Black -

25 Merida Big Trail 300 - Black -



The BIG.TRAIL 300 is a fun-packed and hugely capable trail bike at an amazing price. Its progressive geometry combined with a long travel 140 mm fork and grippy 2.4" wide 29er trail tyres make it the perfect companion for exciting trail sessions and challenging all-day rides over rough terrain. And the long list of exciting features and upgrades adds to its premium looks.

The BIG.TRAIL is back and better than ever! Hailed by the international mountain bike press as one of the best trail hardtails around, we've tweaked it so it goes up, down and along even faster - which obviously means more fun. With updated, progressive geometry, the new BIG.TRAIL builds on an incredibly successful heritage, with a slack head angle and extended reach helping tame the gnarliest trails and a steeper seat angle that makes climbing up to do it again a breeze. We've also given it a slicker and tricker look and improved the frame protection too, so it'll stay looking good for longer. Join the BIG.TRAIL family and enjoy hassle-free trail fun in spades. Available from XSmall to XLarge, perfect for finding your preferred size and reach options.

  • Durable double butted aluminium frame
  • 140 mm air trail fork
  • Progressive trail bike geometry with long reach, slack head angle and steep seat angle
  • 29er wheels with 2.4" aggressive trail tyres
  • Extremely low standover height paired with long travel dropper posts
  • Multiple fixing points for bottles and other equipment, internal cable routing

    Specifications
    FRAME     BIG.TRAIL TFS II; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
    FORK     SR Suntour XCR34; Air; 140 STR; platform
    BRAKE - FRONT     Shimano MT200; 2 piston
    BRAKE - REAR     Shimano MT200; 2 piston
    ROTOR - FRONT     Shimano RT10; 180mm
    ROTOR - REAR     Shimano RT10; 180mm
    CHAIN     KMC xGlide
    CHAINGUARD
    CHAINWHEEL     Shimano CUES U4000; 32 ATC
    CRANK/SIZE     170 mm for all sizes
    BB SET     FSA BB-7420ST 127.5mm
    DERAILLEUR - FRONT
    DERAILLEUR - REAR     Shimano CUES U4000;
    FREEWHEEL     Shimano LG300; 11-46 ATC; 9 GER
    PEDAL
    GRIP     MERIDA COMP EC
    H-BAR     MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB
    H-B STEM     MERIDA COMP TR; MAT aluminium; 35 DSH; +7' ASD
    H-STEM/SIZE     40 mm
    HUB - FRONT     Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
    HUB - REAR     Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
    AXLE - REAR     MERIDA COMP TR; including removeable lever, 6/4mm allen key
    RIM     MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
    SADDLE     MERIDA COMP SL; 25% recycled material; V-mount
    SEAT CLAMP     MERIDA EXPERT
    SEAT POST     MERIDA COMP TR II; 34.9 DSP; 0 SSB; XS: 150 SPT?S: 170 SPT?M/L: 200 SPT?XL: 230 SPT
    SHIFTER - FRONT
    SHIFTER - REAR     Shimano CUES U4000
    TYRE - FRONT     Kenda Regolith; 29x2.4"; wire
    TYRE - REAR     Kenda Regolith; 29x2.4"; wire



    Geometries

    Bike Frame Geometry Image
    Frame Size XShort Short Mid Long XLong
    Tyre Sizes 29" 29" 29" 29" 29"
    ST seat tube [mm] 385 400 420 445 475
    TT top tube [mm] 559 581 603 630 657
    CS chain stay length [mm] 435 435 435 435 435
    HTA head tube angle [°] 64 64 64 64 64
    STA seat tube angle [°] 76.5 76.5 76.5 76.5 76.5
    BD bottom bracket drop [mm] 70 70 70 70 70
    HT head tube [mm] 90 100 110 120 130
    FL fork length [mm] 551 551 551 551 551
    R reach [mm] 415 435 455 480 505
    S stack [mm] 627 636 645 654 663
    WB wheel base [mm] 1165 1189 1214 1243 1272
    SH stand over height [mm] 715 721 724 726 729
    Str Stack To Reach Ratio Pc 1.51 1.46 1.42 1.36 1.31
    Seat Post Mounting Depth Max Mm 300 315 335 360 390
    Select Size
    From $349.17

    Original: $997.62

    -65%
    25 Merida Big Trail 300 - Black -—

    $997.62

    $349.17

    Product Information

    Shipping & Returns

    Description



    The BIG.TRAIL 300 is a fun-packed and hugely capable trail bike at an amazing price. Its progressive geometry combined with a long travel 140 mm fork and grippy 2.4" wide 29er trail tyres make it the perfect companion for exciting trail sessions and challenging all-day rides over rough terrain. And the long list of exciting features and upgrades adds to its premium looks.

    The BIG.TRAIL is back and better than ever! Hailed by the international mountain bike press as one of the best trail hardtails around, we've tweaked it so it goes up, down and along even faster - which obviously means more fun. With updated, progressive geometry, the new BIG.TRAIL builds on an incredibly successful heritage, with a slack head angle and extended reach helping tame the gnarliest trails and a steeper seat angle that makes climbing up to do it again a breeze. We've also given it a slicker and tricker look and improved the frame protection too, so it'll stay looking good for longer. Join the BIG.TRAIL family and enjoy hassle-free trail fun in spades. Available from XSmall to XLarge, perfect for finding your preferred size and reach options.

    • Durable double butted aluminium frame
    • 140 mm air trail fork
    • Progressive trail bike geometry with long reach, slack head angle and steep seat angle
    • 29er wheels with 2.4" aggressive trail tyres
    • Extremely low standover height paired with long travel dropper posts
    • Multiple fixing points for bottles and other equipment, internal cable routing

      Specifications
      FRAME     BIG.TRAIL TFS II; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
      FORK     SR Suntour XCR34; Air; 140 STR; platform
      BRAKE - FRONT     Shimano MT200; 2 piston
      BRAKE - REAR     Shimano MT200; 2 piston
      ROTOR - FRONT     Shimano RT10; 180mm
      ROTOR - REAR     Shimano RT10; 180mm
      CHAIN     KMC xGlide
      CHAINGUARD
      CHAINWHEEL     Shimano CUES U4000; 32 ATC
      CRANK/SIZE     170 mm for all sizes
      BB SET     FSA BB-7420ST 127.5mm
      DERAILLEUR - FRONT
      DERAILLEUR - REAR     Shimano CUES U4000;
      FREEWHEEL     Shimano LG300; 11-46 ATC; 9 GER
      PEDAL
      GRIP     MERIDA COMP EC
      H-BAR     MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB
      H-B STEM     MERIDA COMP TR; MAT aluminium; 35 DSH; +7' ASD
      H-STEM/SIZE     40 mm
      HUB - FRONT     Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
      HUB - REAR     Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
      AXLE - REAR     MERIDA COMP TR; including removeable lever, 6/4mm allen key
      RIM     MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
      SADDLE     MERIDA COMP SL; 25% recycled material; V-mount
      SEAT CLAMP     MERIDA EXPERT
      SEAT POST     MERIDA COMP TR II; 34.9 DSP; 0 SSB; XS: 150 SPT?S: 170 SPT?M/L: 200 SPT?XL: 230 SPT
      SHIFTER - FRONT
      SHIFTER - REAR     Shimano CUES U4000
      TYRE - FRONT     Kenda Regolith; 29x2.4"; wire
      TYRE - REAR     Kenda Regolith; 29x2.4"; wire



      Geometries

      Bike Frame Geometry Image
      Frame Size XShort Short Mid Long XLong
      Tyre Sizes 29" 29" 29" 29" 29"
      ST seat tube [mm] 385 400 420 445 475
      TT top tube [mm] 559 581 603 630 657
      CS chain stay length [mm] 435 435 435 435 435
      HTA head tube angle [°] 64 64 64 64 64
      STA seat tube angle [°] 76.5 76.5 76.5 76.5 76.5
      BD bottom bracket drop [mm] 70 70 70 70 70
      HT head tube [mm] 90 100 110 120 130
      FL fork length [mm] 551 551 551 551 551
      R reach [mm] 415 435 455 480 505
      S stack [mm] 627 636 645 654 663
      WB wheel base [mm] 1165 1189 1214 1243 1272
      SH stand over height [mm] 715 721 724 726 729
      Str Stack To Reach Ratio Pc 1.51 1.46 1.42 1.36 1.31
      Seat Post Mounting Depth Max Mm 300 315 335 360 390
