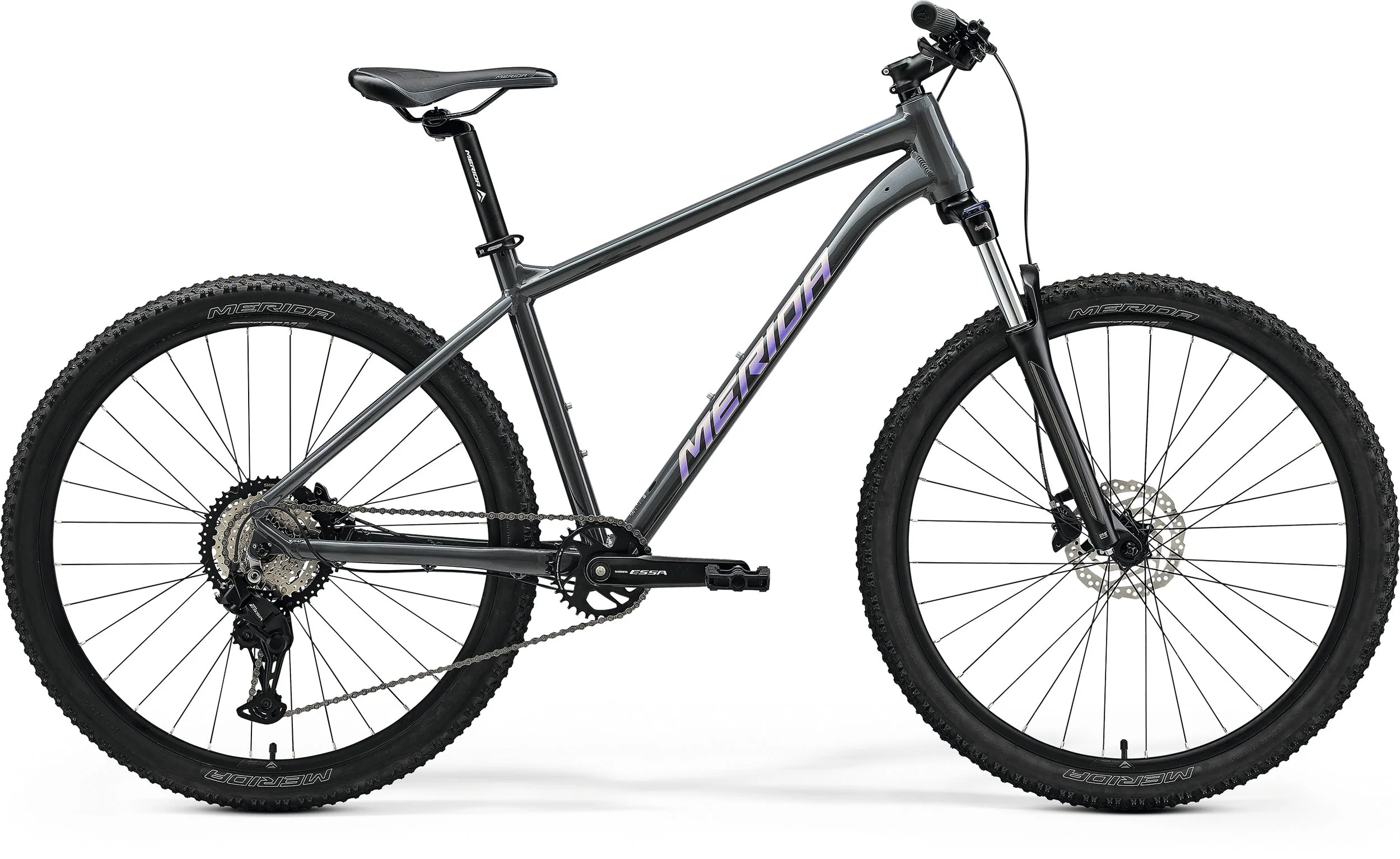

25 Merida Big Seven 20 - Dark Grey/Purple -
Get ready to conquer the trails with the 25 Merida Big Seven 20 bike! Designed for off-road adventures, this bike offers high performance and durability. With a sleek dark grey and purple design, you'll stand out on the trails while experiencing a smooth ride. Take on any terrain with confidence on the 25 Merida Big Seven 20!
Double chainring equipped entry-level 27.5" aluminium hardtail featuring a more upright and, therefore, more comfortable riding position than our more race-focused hardtails. The riding position puts less strain on the lower back and also improves the visibility of what lies ahead. A 100 mm suspension fork from SR Suntour and hydraulic disc brakes improve comfort and control even further.
The alternative to our BIG.NINE 29er hardtails for riders who prefer the smaller 27.5" wheels. The latest aluminium frame generation of our BIG.SEVEN TFS and SPEED mountain bikes featuring slim tube shapes create a new look and a more relaxed geometry. A shorter top tube and a higher head tube offering a more upright riding position and enhanced trail visibility. Similarly to our 29er wheeled BIG.NINE range, our classic BIG.SEVEN hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. They represent the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.
- Double butted aluminium frame with 27.5" wheels
- Less aggressive and more upright geometry for maximum control and comfort
- SR Suntour 100 mm travel suspension fork with lockout
- Shimano 8-speed drivetrain with double chainring setup
- Hydraulic disc brakes
- Internal cable routing
FRAME BIG.SEVEN TFS IV; MAT aluminium; 27.5x2.25" max. WHS; 135x9 AST; BSA BBR
SIZE XS-S-M-L
FORK SR Suntour XCT30 HLO; Coil; 100 STR; Lockout; 27.5x2.25" max. WHS
BRAKE LEVER
BRAKE - FRONT Shimano BR-MT200; hydraulic brake
BRAKE - REAR Shimano BR-MT200; hydraulic brake
ROTOR - FRONT Shimano RT10; 160 mm
ROTOR - REAR Shimano RT10; 160 mm
CHAIN KMC Z8.3
CHAINWHEEL Shimano ESSA FC-U2001 32 ATC; MAT Aluminium
CRANK/SIZE 170 mm-XS/S, 175 mm-M/L
BB SET Shimano BB-UN101 73-123
DERAILLEUR - FRONT
DERAILLEUR - REAR Shimano ESSA RD-U2000-8; GS
FREEWHEEL Shimano CS-HG400-8; 11-45 ATC; 8 GER
PEDAL VP VPE-891
GRIP MERIDA EC
HANDLEBAR MERIDA CC; MAT aluminium; 690 WHB; 15 RHB
H-B STEM MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD
H-STEM/SIZE 70 mm-XS/S, 90 mm-M/L,
HEAD SET MERIDA M2345
HUB - FRONT Shimano TX505; 100x9 WHF; 32 SPH; Centerlock
HUB - REAR Shimano TX505; 135x9 WHR; 32 SPH; Centerlock
RIM MERIDA CC; 17 IWR; MAT aluminium
SADDLE MERIDA Sport comfort
SEAT CLAMP MERIDA COMP QR
SEAT POST MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium
SHIFTER - FRONT
SHIFTER - REAR Shimano ESSA SL-315-8R
INNER TUBE 27.5*2.2 A.V
TYRE - FRONT MERIDA K1080; 27.5x2.2"; wire
TYRE - REAR MERIDA K1080; 27.5x2.2"; wire
Geometries
| Frame Size | XS | S |
| Tyre Sizes | 27.5" | 27.5" |
| ST seat tube [mm] | 340 | 380 |
| TT top tube [mm] | 550 | 570 |
| CS chain stay length [mm] | 430 | 430 |
| HTA head tube angle [°] | 69 | 69 |
| STA seat tube angle [°] | 73 | 73 |
| BD bottom bracket drop [mm] | 30 | 30 |
| HT head tube [mm] | 100 | 115 |
| FL fork length [mm] | 487 | 487 |
| R reach [mm] | 378 | 394 |
| S stack [mm] | 563 | 577 |
| WB wheel base [mm] | 1056 | 1078 |
| SH stand over height [mm] | 649 | 689 |
