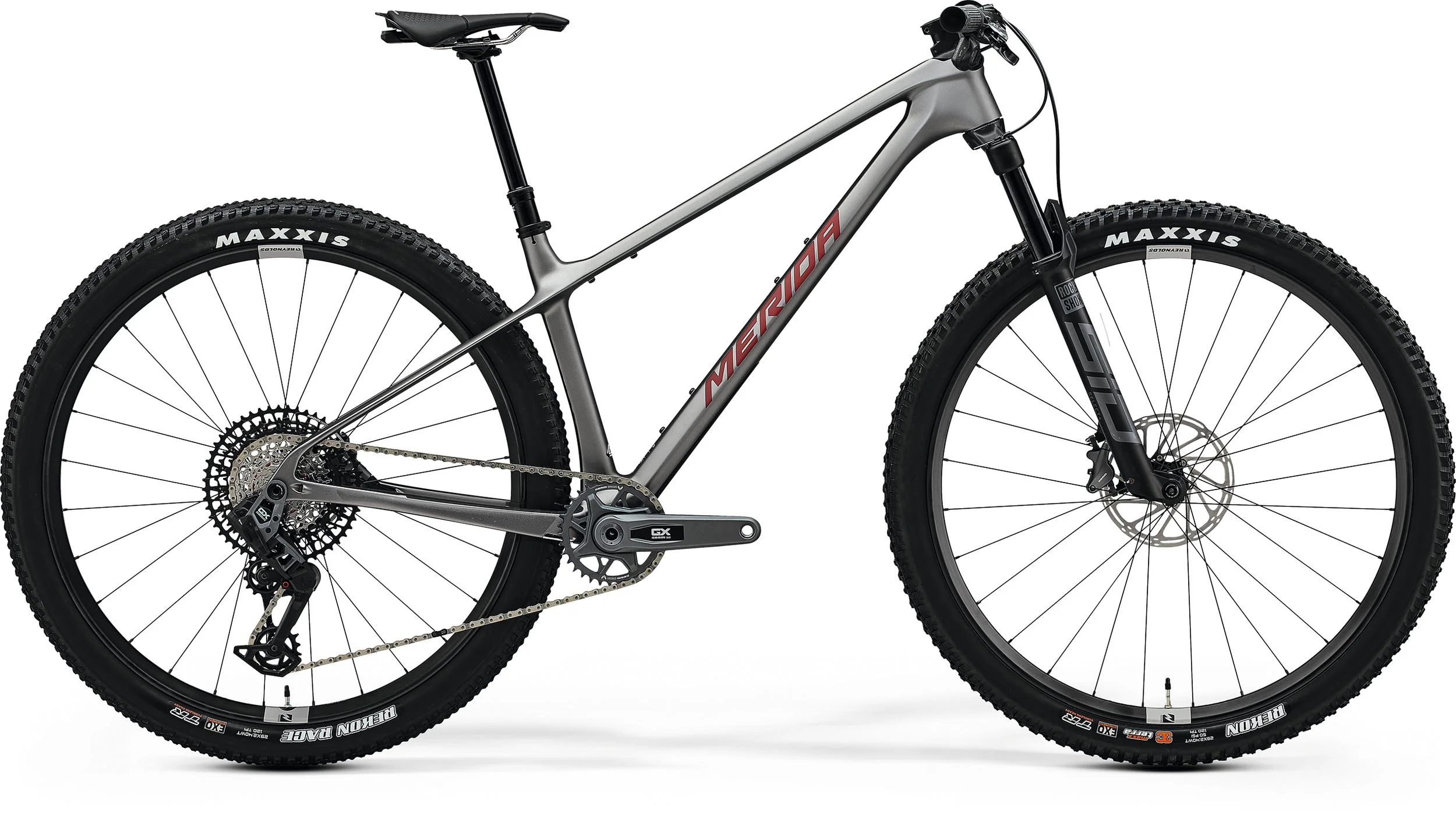

25 Merida Big Nine TR 8000 - Silk Gunmetal Grey/Red -
Get ready to take on any terrain with the 25 Merida Big Nine TR 8000 mountain bike! With its durable frame and sleek design, this bike is perfect for avid riders looking for a smooth and thrilling ride. Experience the power and control of the Silk Gunmetal Grey/Red color scheme with the 25 Merida Big Nine TR 8000.
Cross-country speed, trail bike performance. The latest BIG.NINE TR 8000 boosts the descending capability of our latest progressive geometry carbon fibre frame by adding a longer travel 120 mm fork, more aggressive tyres and a dropper seatpost for improved control. A long travel dropper post and RockShox SID fork deliver control and precision while the wireless SRAM GX T-Type drivetrain and lightweight Reynold carbon wheelset offer blisteringly fast pace, uphill or down. Cross-country, downcountry - this bike is ready for it all.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.
- Lightweight CF3 carbon fibre frame with 2.4" tyre clearance
- Progressive geometry with AGILOMETER sizing for confident handling
- Fox 34 SC fork with 120 mm travel for improved descending ability
- Wireless SRAM GX T-type 12-speed drivetrain
- Lightweight carbon Reynolds wheelset and trail-ready tyres
- Lightweight long travel MERIDA TEAM TR SL dropper seatpost with remote lever
FRAME BIG.NINE TR CF3 III; MAT carbon; 29x2.4" max WHS; 148x12 AST; BSA BBR
SHOCK
FORK Rock Shox SID Select+; Air; 120 STR; 2 position remote lockout; 29x2.4" max. WHS; 44mm fork offset
BRAKE - FRONT Sram Level Bronze Stealth; 2 piston
BRAKE - REAR Sram Level Bronze Stealth; 2 piston
ROTOR - FRONT Sram Centerline; 180mm
ROTOR - REAR Sram Centerline; 160mm
CHAIN Sram GX Eagle Transmission; Flattop
CHAINGUARD
CHAINWHEEL Sram GX Eagle; 34 ATC
CRANK/SIZE 170 mm-S, 175 mm-M up
BB SET Sram BB DUB BSA 73 MTB WIDE
DERAILLEUR - FRONT
DERAILLEUR - REAR Sram GX Eagle Transmission AXS; wireless; T-Type
FREEWHEEL Sram GX Eagle Transmission; 10-52 ATC; 12 GER
PEDAL
GRIP MERIDA TEAM CC
H-BAR MERIDA TEAM CC II; MAT carbon; 760 WHB; 12.5 RHB
H-B STEM MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; incl. MERIDA SMART MOUNT
H-STEM/SIZE S, M, L: 60 mm, XL, XXL 70 mm
HUB - FRONT
HUB - REAR
AXLE - REAR MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
RIM Reynolds TR 309 XC; 110x15 WHF; 148x12 WHR; 30 IWR; Centerlock; Sram 12 Speed; MAT carbon; Tubeless ready (tubeless tape and valves included); Lifetime warranty
SADDLE SCRATCH M5 PAS TIROX; V-mount adapter; incl. MERIDA minitool
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA TEAM TR SL; 30.9 DSP; 0 SSB; S/M: 150 SPT - L/XL/XXL: 170 SPT
SHIFTER - FRONT JD-FL MX lever
SHIFTER - REAR Sram AXS POD Controller
TYRE - FRONT Maxxis Rekon; 29x2.4" WT; tubeless ready; 3C EXO
TYRE - REAR Maxxis Rekon Race; 29x2.4" WT; tubeless ready; 3C MaxxTerra EXO
BOTTLE CAGE
E-SHIFT PARTS-1 EP POWERPACK 1 BATTERY
OTHER 1 MERIDA SMART MOUNT; Garmin Carrier + Garmin insert*2 + GoPro/Light Mount
OTHER 2
OTHER 3 V-mount adapter
OTHER 4
OTHER 5 MERIDA Multitool with saddlebox
Geometries
| Frame Size | S | M | L | XL |
| Tyre Sizes | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 380 | 410 | 440 | 470 |
| TT top tube [mm] | 594 | 614 | 637 | 659 |
| CS chain stay length [mm] | 430 | 433 | 436 | 439 |
| HTA head tube angle [°] | 66.9 | 66.9 | 66.9 | 66.9 |
| STA seat tube angle [°] | 74.2 | 74.2 | 74.2 | 74.2 |
| BD bottom bracket drop [mm] | 57 | 57 | 57 | 57 |
| HT head tube [mm] | 95 | 95 | 105 | 115 |
| FL fork length [mm] | 530 | 530 | 530 | 530 |
| R reach [mm] | 420 | 440 | 460 | 480 |
| S stack [mm] | 614 | 614 | 624 | 633 |
| WB wheel base [mm] | 1132 | 1155 | 1182 | 1209 |
| SH stand over height [mm] | 711 | 711 | 717 | 738 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
25 Merida Big Nine TR 8000 - Silk Gunmetal Grey/Red -
25 Merida Big Nine TR 8000 - Silk Gunmetal Grey/Red -
Get ready to take on any terrain with the 25 Merida Big Nine TR 8000 mountain bike! With its durable frame and sleek design, this bike is perfect for avid riders looking for a smooth and thrilling ride. Experience the power and control of the Silk Gunmetal Grey/Red color scheme with the 25 Merida Big Nine TR 8000.
Cross-country speed, trail bike performance. The latest BIG.NINE TR 8000 boosts the descending capability of our latest progressive geometry carbon fibre frame by adding a longer travel 120 mm fork, more aggressive tyres and a dropper seatpost for improved control. A long travel dropper post and RockShox SID fork deliver control and precision while the wireless SRAM GX T-Type drivetrain and lightweight Reynold carbon wheelset offer blisteringly fast pace, uphill or down. Cross-country, downcountry - this bike is ready for it all.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.
- Lightweight CF3 carbon fibre frame with 2.4" tyre clearance
- Progressive geometry with AGILOMETER sizing for confident handling
- Fox 34 SC fork with 120 mm travel for improved descending ability
- Wireless SRAM GX T-type 12-speed drivetrain
- Lightweight carbon Reynolds wheelset and trail-ready tyres
- Lightweight long travel MERIDA TEAM TR SL dropper seatpost with remote lever
FRAME BIG.NINE TR CF3 III; MAT carbon; 29x2.4" max WHS; 148x12 AST; BSA BBR
SHOCK
FORK Rock Shox SID Select+; Air; 120 STR; 2 position remote lockout; 29x2.4" max. WHS; 44mm fork offset
BRAKE - FRONT Sram Level Bronze Stealth; 2 piston
BRAKE - REAR Sram Level Bronze Stealth; 2 piston
ROTOR - FRONT Sram Centerline; 180mm
ROTOR - REAR Sram Centerline; 160mm
CHAIN Sram GX Eagle Transmission; Flattop
CHAINGUARD
CHAINWHEEL Sram GX Eagle; 34 ATC
CRANK/SIZE 170 mm-S, 175 mm-M up
BB SET Sram BB DUB BSA 73 MTB WIDE
DERAILLEUR - FRONT
DERAILLEUR - REAR Sram GX Eagle Transmission AXS; wireless; T-Type
FREEWHEEL Sram GX Eagle Transmission; 10-52 ATC; 12 GER
PEDAL
GRIP MERIDA TEAM CC
H-BAR MERIDA TEAM CC II; MAT carbon; 760 WHB; 12.5 RHB
H-B STEM MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; incl. MERIDA SMART MOUNT
H-STEM/SIZE S, M, L: 60 mm, XL, XXL 70 mm
HUB - FRONT
HUB - REAR
AXLE - REAR MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
RIM Reynolds TR 309 XC; 110x15 WHF; 148x12 WHR; 30 IWR; Centerlock; Sram 12 Speed; MAT carbon; Tubeless ready (tubeless tape and valves included); Lifetime warranty
SADDLE SCRATCH M5 PAS TIROX; V-mount adapter; incl. MERIDA minitool
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA TEAM TR SL; 30.9 DSP; 0 SSB; S/M: 150 SPT - L/XL/XXL: 170 SPT
SHIFTER - FRONT JD-FL MX lever
SHIFTER - REAR Sram AXS POD Controller
TYRE - FRONT Maxxis Rekon; 29x2.4" WT; tubeless ready; 3C EXO
TYRE - REAR Maxxis Rekon Race; 29x2.4" WT; tubeless ready; 3C MaxxTerra EXO
BOTTLE CAGE
E-SHIFT PARTS-1 EP POWERPACK 1 BATTERY
OTHER 1 MERIDA SMART MOUNT; Garmin Carrier + Garmin insert*2 + GoPro/Light Mount
OTHER 2
OTHER 3 V-mount adapter
OTHER 4
OTHER 5 MERIDA Multitool with saddlebox
Geometries
| Frame Size | S | M | L | XL |
| Tyre Sizes | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 380 | 410 | 440 | 470 |
| TT top tube [mm] | 594 | 614 | 637 | 659 |
| CS chain stay length [mm] | 430 | 433 | 436 | 439 |
| HTA head tube angle [°] | 66.9 | 66.9 | 66.9 | 66.9 |
| STA seat tube angle [°] | 74.2 | 74.2 | 74.2 | 74.2 |
| BD bottom bracket drop [mm] | 57 | 57 | 57 | 57 |
| HT head tube [mm] | 95 | 95 | 105 | 115 |
| FL fork length [mm] | 530 | 530 | 530 | 530 |
| R reach [mm] | 420 | 440 | 460 | 480 |
| S stack [mm] | 614 | 614 | 624 | 633 |
| WB wheel base [mm] | 1132 | 1155 | 1182 | 1209 |
| SH stand over height [mm] | 711 | 711 | 717 | 738 |
Original: $4,719.22
-65%$4,719.22
$1,651.73Product Information
