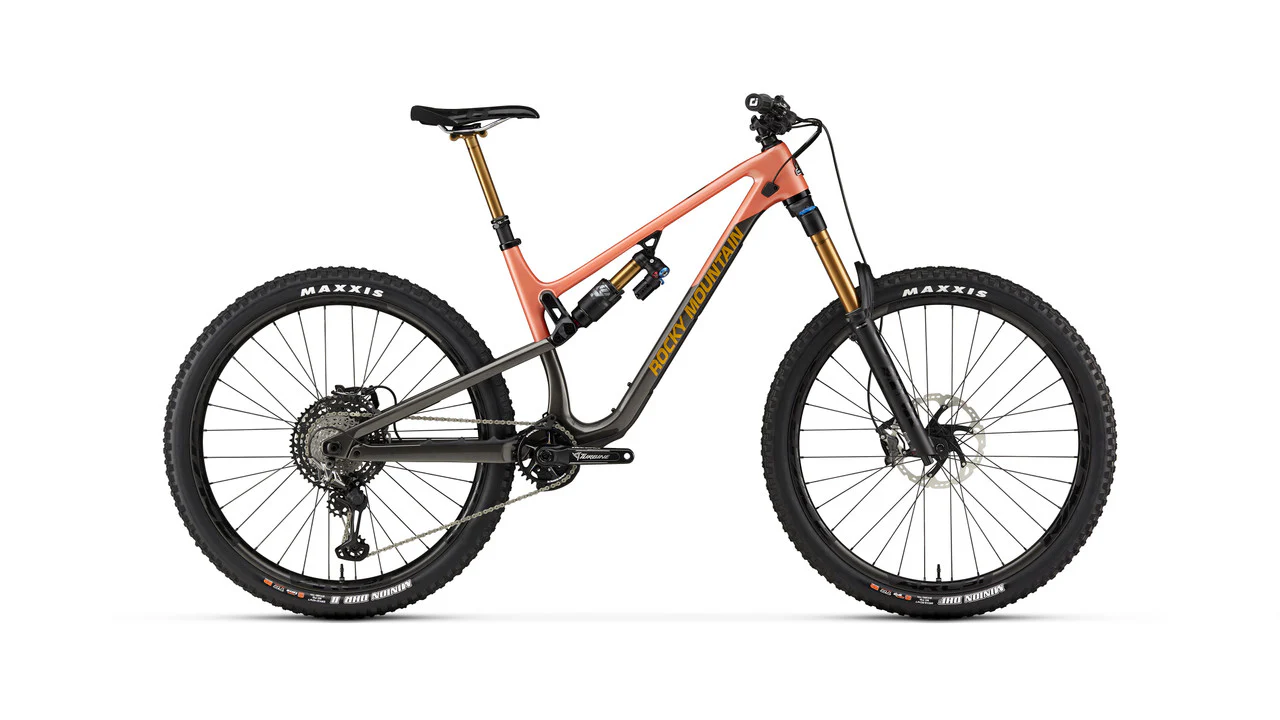

Race circuits or Sunday Shreds, the Altitude has you covered. Purpose-built and race-proven, it’s the ultimate enduro weapon for demolishing steep trails and making every session faster. Sure, total enduro capability translates nicely to podiums. But it also means bigger and more committing weekend rides for the rest of us. With so much capability in your corner, it makes you want to push limits, climb faster, and get better.

Frame
• SMOOTHWALL™ Carbon Frame
• SMOOTHWALL™ Carbon Rear Triangle
• 160mm Rear Travel
• Full Sealed Cartridge Bearings
• Press Fit Bottom Bracket
• Internal Cable Routing
• 2-Bolt ISCG05 Tabs
• RIDE-9™ Adjustable Geometry
• 2-Position Axle
• Sizes: SM / MD / LG / XL

Suspension
• Fork: Fox 38 Float EVOL GRIP2 Factory Series, 170mm Travel
• Offset: 27.5" = 37mm | 29" = 44mm

Cockpit
• Handlebar: Race Face Next R, 780mm Width, 35mm Rise, 8° Backsweep, 4° Upsweep, 35mm Clamp
• Grips: ODI Elite Pro Lock-On
• Stem: Race Face Turbine R, 0° Rise, 40mm Length

Seating
• Saddle: WTB Volt Race 142
• Seatpost: Fox Transfer Factory Series, 30.9mm
• Travel: SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm

Drivetrain
• Shifter: Shimano XTR
• Rear Derailleur: Shimano XTR
• Cassette: Shimano XTR 12-Speed, 10-51T
• Chain: Shimano XTR 12-Speed
• Crankset: Race Face Turbine Cinch, 32T, 30mm Spindle, 170mm Crank Length
• Bottom Bracket: Race Face BB92, 30mm

Brakes
• Shimano XTR Trail 4-Piston Brakes
• IceTec Metallic Pads
• Front Rotor: Shimano RT86, 203mm
• Rear Rotor: Shimano RT86, 203mm

Wheelset
• Front Hub: DT Swiss 350 Boost, 15mm
• Rear Hub: DT Swiss 350 Boost 148mm, 36T Star Ratchet
• Spokes: DT Swiss Competition 2.0/1.8/2.0
• Rims: Race Face ARC Carbon 31, 32h, Tubeless Ready, Tape & Valves Included

Tires
• Front Tire: Maxxis Minion DHF 2.5 WT, 3C MaxxGrip DD, Tubeless Ready
• Rear Tire: Maxxis Minion DHR II 2.4 WT, 3C MaxxTerra DD, Tubeless Ready
• CushCore XC Tire Inserts Included
